| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

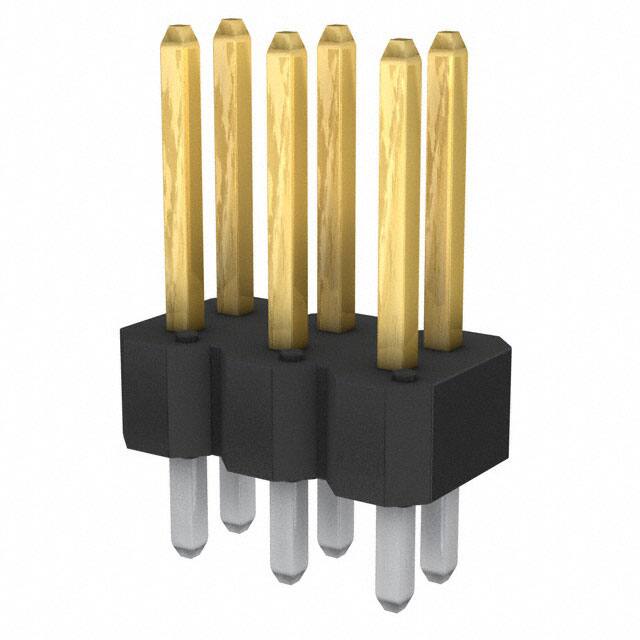

The Amphenol ICC 77313-124-06LF is a 6-position, 2-row, through-hole unshrouded header connector with a 2.54mm pitch and 2.54mm row spacing. It is part of the breakaway header series, allowing for customization of pin count. The connector uses square male pins made of phosphor bronze with a tin plating thickness of 30µin (0.76µm). The contact length is 6.75mm, and overall contact length is 12.19mm. The insulation material is black thermoplastic, rated UL94 V-0 for flammability. The operating temperature range is -65°C to 130°C, and the current rating is 3A per contact. This connector is suitable for board-to-board or cable applications. The mounting type is through-hole with solder termination, and the fastening type is push-pull. The connector is unshrouded and has a breakaway design, making it adaptable for various configurations. Typical applications include general-purpose interconnection in electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
| 10+ | $0.42 | $0.42 |
| 100+ | $0.36 | $0.36 |
| 500+ | $0.32 | $0.32 |
| 1,000+ | $0.30 | $0.30 |
| 5,000+ | $0.27 | $0.27 |
| 10,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.54mm (0.100").
3A per contact.
Through Hole.
-65°C to 130°C.
Phosphor Bronze with tin plating, 30µin (0.76µm) thickness.
The listed RoHS status is RoHS3 Compliant, but this is unverified.
