| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

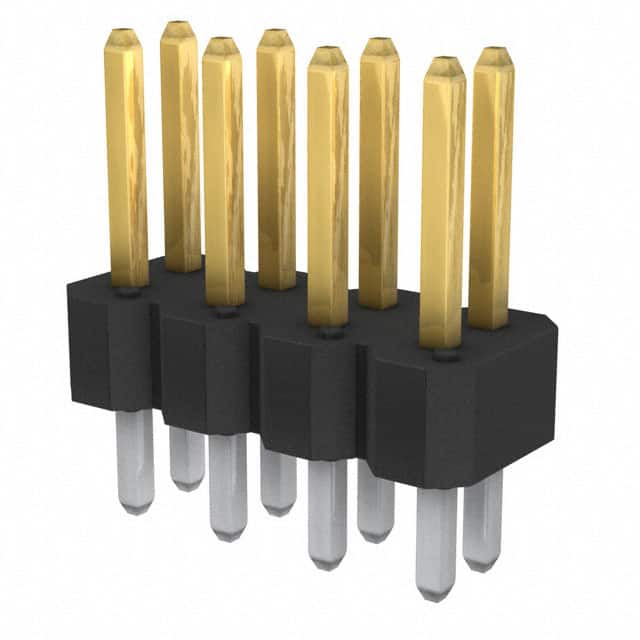

The Amphenol ICC 77313-118-08LF is a 8-position, 2-row, 2.54mm pitch unshrouded header designed for through-hole mounting. It features male pin contacts made of phosphor bronze with a tin finish (30µin thickness). The insulation is made of black thermoplastic rated UL94 V-0, with an insulation height of 2.54mm. The overall contact length is 11.43mm, with a mating contact length of 5.84mm.
Electrical ratings include a current rating of 3A per contact and an operating temperature range of -65°C to 130°C. The connector uses a push-pull fastening mechanism and is suitable for board-to-board or cable applications. The contact shape is square, and all positions are loaded.
Packaging is standard through-hole, solder termination. The part is RoHS3 compliant and REACH unaffected, though these compliances are unverified. The component is commonly used in prototyping and industrial applications where breakaway headers are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.59 | $0.59 |
| 10+ | $0.51 | $0.51 |
| 100+ | $0.43 | $0.43 |
| 500+ | $0.38 | $0.38 |
| 1,000+ | $0.37 | $0.37 |
| 5,000+ | $0.33 | $0.33 |
| 10,000+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") and row spacing is also 2.54mm.
Through-hole mounting with solder termination.
3A per contact.
-65°C to 130°C.
Phosphor bronze contacts with a tin finish, thickness 30.0µin (0.76µm).
Black thermoplastic with UL94 V-0 flammability rating.
