| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

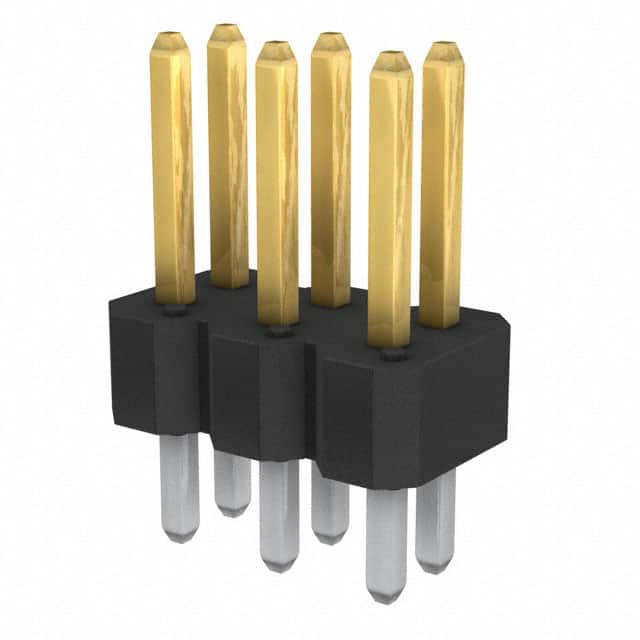

The 77313-118-06LF is a 6-position, 2-row, 2.54mm pitch through hole male pin header manufactured by Amphenol ICC. This unshrouded header uses a push-pull fastening type and is designed for board-to-board or cable connections.
The contacts are made of phosphor bronze with a tin finish (30.0µin thickness) and are rated for 3A per contact. The insulation is black thermoplastic with a UL94 V-0 flammability rating, and the header has an insulation height of 2.54mm. The overall contact length is 0.450" (11.43mm) with a contact length of 5.84mm.
This header operates over a temperature range of -65°C to 130°C. It is suitable for general purpose interconnection in industrial, consumer, and prototyping applications. The through hole mounting and solder termination provide reliable mechanical and electrical connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
| 10+ | $0.33 | $0.33 |
| 100+ | $0.28 | $0.28 |
| 500+ | $0.25 | $0.25 |
| 1,000+ | $0.24 | $0.24 |
| 5,000+ | $0.21 | $0.21 |
| 10,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions in 2 rows, all positions loaded.
The pitch is 2.54mm (0.100") with a row spacing of 0.100" (2.54mm).
The current rating is 3A per contact.
The mounting type is through hole with solder termination.
Contacts are made of phosphor bronze with a tin finish of 30.0µin (0.76µm).
The operating temperature range is -65°C to 130°C.
The insulation material is black thermoplastic with a UL94 V-0 flammability rating.
