| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

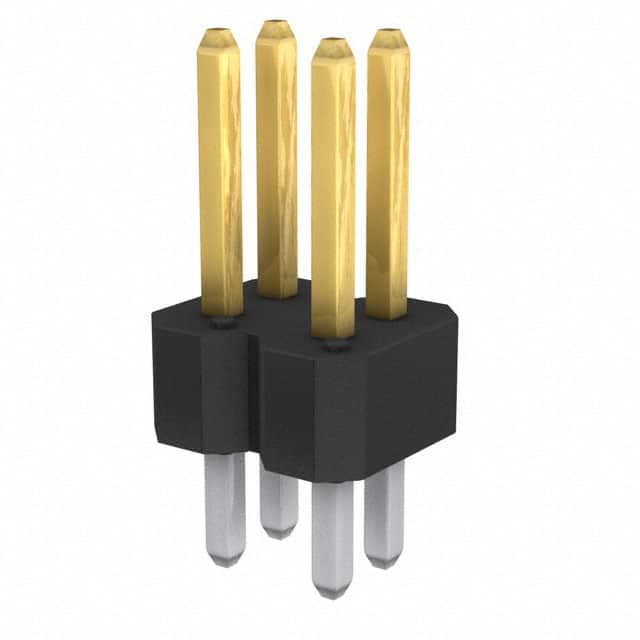

The Amphenol ICC 77313-118-04LF is a 4-position, 2-row unshrouded header designed for board-to-board or cable applications. It uses a 2.54mm (0.100") pitch and row spacing, making it compatible with standard 0.025" square pin receptacles.
This header features through hole mounting with solder termination. The male pins are made of phosphor bronze with a 30.0µin (0.76µm) tin finish. The overall contact length is 0.450" (11.43mm) with a contact length of 0.230" (5.84mm). The black thermoplastic insulator has a height of 2.54mm (0.100").
Electrical rating is 3A per contact. The operating temperature range is -65°C to 130°C. The insulator material has a UL94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.26 | $0.26 |
| 10+ | $0.23 | $0.23 |
| 100+ | $0.19 | $0.19 |
| 500+ | $0.17 | $0.17 |
| 1,000+ | $0.16 | $0.16 |
| 5,000+ | $0.15 | $0.15 |
| 10,000+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
The current rating is 3A per contact.
It is a through hole mounting connector with solder termination.
The operating temperature range is -65°C to 130°C.
The contacts are phosphor bronze with a 30.0µin (0.76µm) tin finish.
It is an unshrouded header with a push-pull fastening type.
