| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

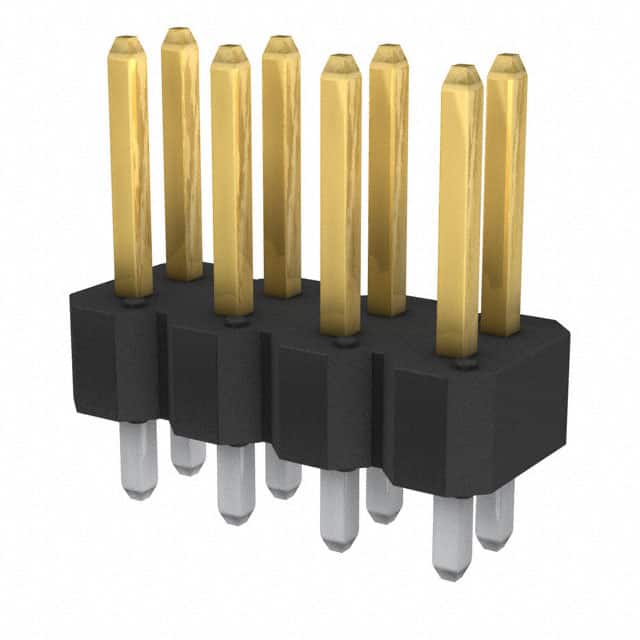

The 77313-101-08LF is an unshrouded breakaway header with male pin contacts, designed for board-to-board or cable connections. It features 8 positions in 2 rows with a 2.54mm pitch and row spacing, making it suitable for standard 0.100 inch grid applications.
The header is through-hole mounted with solder termination and uses a push-pull fastening mechanism. Contacts are made of phosphor bronze with a tin finish (30.0 microinches), suitable for general-purpose interconnection. The black thermoplastic insulator is rated UL94 V-0 for flammability.
Electrical rating is 3A per contact, and the operating temperature range spans -65°C to +130°C. This part is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
| 10+ | $0.41 | $0.41 |
| 100+ | $0.35 | $0.35 |
| 500+ | $0.31 | $0.31 |
| 1,000+ | $0.30 | $0.30 |
| 5,000+ | $0.26 | $0.26 |
| 10,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions (all loaded) in 2 rows.
The pitch is 2.54mm (0.100 inches), with the same 2.54mm row spacing.
It is rated for 3A per contact.
It is a through-hole mounting type with solder termination.
