| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

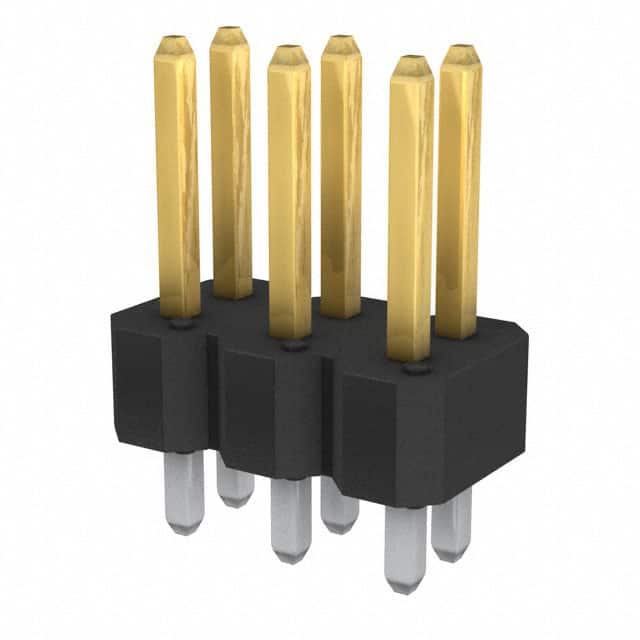

This is an unshrouded breakaway header from Amphenol ICC, designed for board-to-board or cable applications. It features 6 male pin contacts arranged in 2 rows on a standard 2.54mm pitch, with a square pin shape and tin finish.
The connector uses through-hole solder termination and a push-pull fastening mechanism. The black thermoplastic insulation material has a UL94 V-0 flammability rating. Contacts are made of phosphor bronze with a tin plating of 0.76µm.
This header is rated for 3A per contact and operates over a temperature range of -65°C to 130°C. The overall contact length is 10.80mm (0.425") with a contact length of 5.84mm (0.230") and insulation height of 2.54mm (0.100").
| Qty | Low | High |
|---|---|---|
| 1+ | $0.37 | $0.37 |
| 10+ | $0.31 | $0.31 |
| 100+ | $0.27 | $0.27 |
| 500+ | $0.24 | $0.24 |
| 1,000+ | $0.23 | $0.23 |
| 5,000+ | $0.20 | $0.20 |
| 10,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions, all loaded, in 2 rows.
2.54mm (0.100") pitch, with the same 2.54mm row spacing.
3A per contact.
Through hole mounting with solder termination.
-65°C to 130°C.
Phosphor bronze contact material with a tin finish of 30.0µin (0.76µm).
Unshrouded. It is a breakaway header style.
