| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

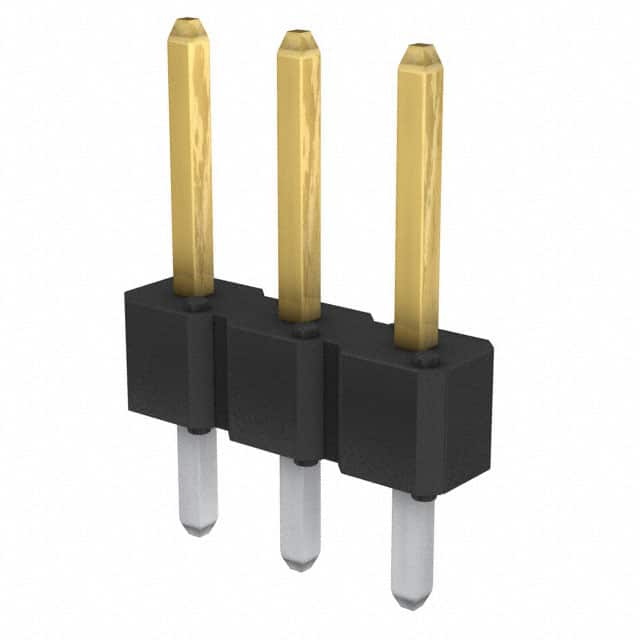

The 77311-818-03LF is a 3-position header from Amphenol ICC designed for board-to-board interconnect applications. It features a single row of male pins with a 2.54mm pitch, making it suitable for compact designs. The contacts are made of phosphor bronze with tin plating, providing reliable conductivity and solderability. The header is unshrouded and uses a push-pull fastening type. The insulator is black thermoplastic rated UL94 V-0 for flammability. The operating temperature range is -65°C to 125°C, and each contact is rated for 3A. The through hole mounting style ensures sturdy mechanical attachment to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.26 | $0.26 |
| 10+ | $0.22 | $0.22 |
| 100+ | $0.19 | $0.19 |
| 500+ | $0.17 | $0.17 |
| 1,000+ | $0.16 | $0.16 |
| 5,000+ | $0.14 | $0.14 |
| 10,000+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
2.54mm (0.100").
3A per contact.
Through hole.
-65°C to 125°C.
Phosphor bronze contacts with tin plating (15.0µin / 0.38µm).
Unshrouded.
