| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

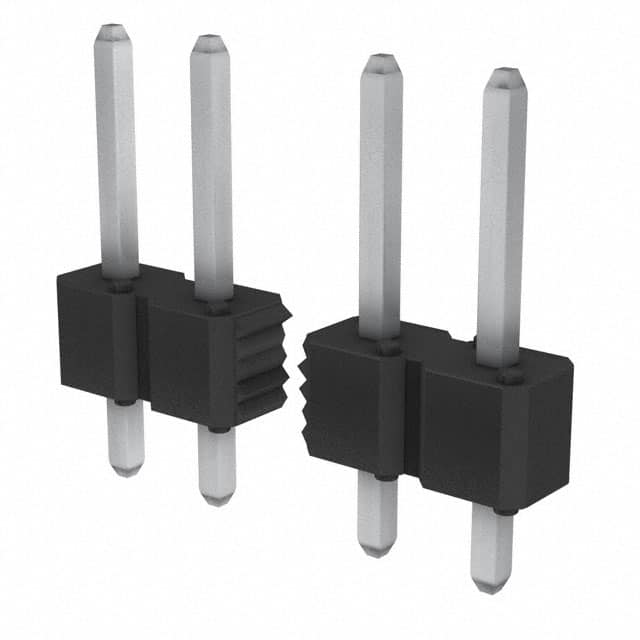

The Amphenol ICC 77311-401-36LF is a 36 position single row unshrouded header designed for board-to-board applications. It features a 2.54mm (0.100") pitch and through hole mounting with solder termination. The header uses square tin plated phosphor bronze contacts with a contact length of 5.84mm (0.230") and an overall contact length of 0.425" (10.80mm). The black thermoplastic insulator has a UL94 V-0 flammability rating and an insulation height of 2.54mm (0.100").
This unshrouded push-pull header is rated for 3A per contact and operates over a temperature range of -65°C to 125°C. All 36 positions are loaded, making it suitable for dense interconnection requirements in industrial and commercial electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.76 | $1.76 |
| 10+ | $1.49 | $1.49 |
| 100+ | $1.27 | $1.27 |
| 500+ | $1.13 | $1.13 |
| 1,000+ | $1.08 | $1.08 |
| 5,000+ | $0.96 | $0.96 |
| 10,000+ | $0.92 | $0.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36 positions, all loaded.
2.54mm (0.100").
3A per contact.
Through hole with solder termination.
-65°C to 125°C.
Phosphor bronze with tin plating, 78.7µin (2.00µm) thickness.
Yes, UL94 V-0 rated thermoplastic.
