| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Ingress Protection | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Working Voltage |

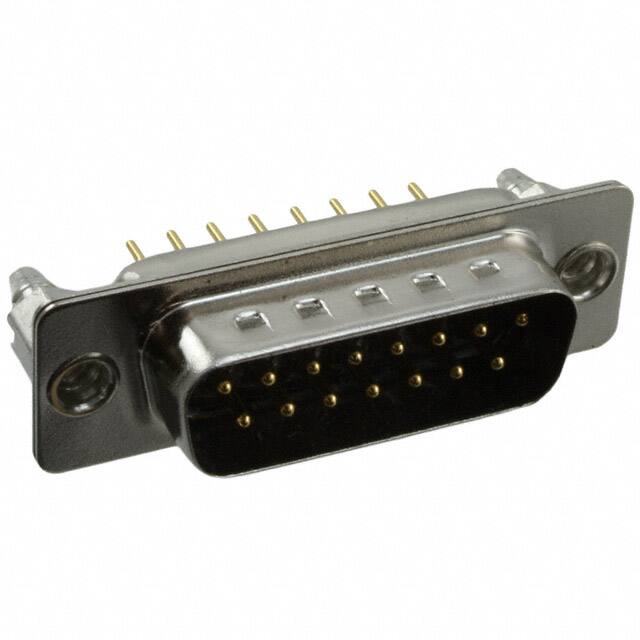

The NorComp Inc. 772-E15-113R051 is a 15-position D-Sub plug connector featuring male pins in a 2-row arrangement. It uses a shell size 2 (DA, A) layout and offers a current rating of 5A with a working voltage of 250VAC. The insulator is molded from glass-filled nylon thermoplastic with a UL94 V-0 flammability rating, ensuring robust electrical isolation. The contacts are gold plated brass (flash thickness) for reliable signal transmission, and the shell is nickel plated steel.
This connector supports panel mount with through hole solder termination. It includes board locks and grounding indents for secure mechanical attachment and EMI grounding. The flange feature uses board-side 4-40 hardware. It is rated IP67 for dust tight and waterproof protection, making it suitable for demanding environments.
Design considerations include an operating temperature range of -55°C to +125°C, contact resistance of 15 mOhm maximum, and insulation resistance of 1000 MOhm minimum. The sealing material is F08 flexible adhesive as noted in the manufacturer datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.57 | $10.57 |
| 10+ | $8.98 | $8.98 |
| 25+ | $8.42 | $8.42 |
| 70+ | $7.83 | $7.83 |
| 140+ | $7.46 | $7.46 |
| 280+ | $7.10 | $7.10 |
| 560+ | $6.76 | $6.76 |
| 1,050+ | $6.47 | $6.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions.
5 Amps.
250VAC.
Panel Mount, Through Hole with solder termination.
Yes, IP67 dust tight and waterproof.
Gold plated brass.
