Mfr Part #:

7717-30N

Available from 1 distributors

Mfr Name: Aavid, Thermal Division of Boyd Corporation

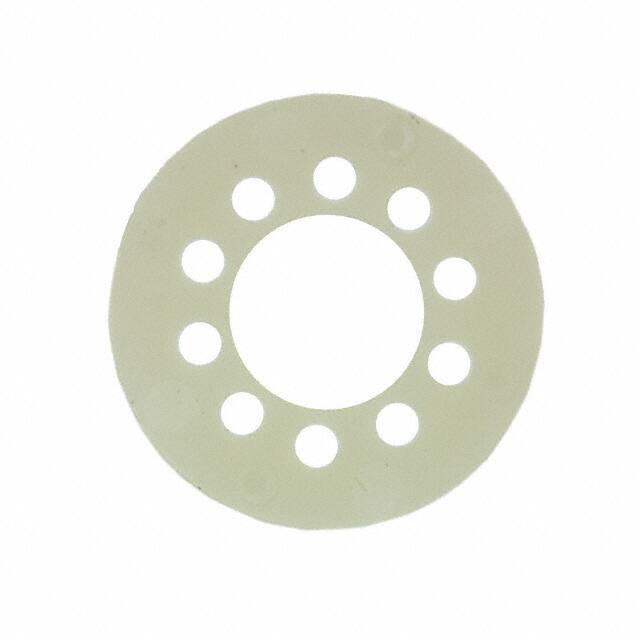

Circular nylon mount for general purpose axial and radial components. 9.53mm diameter, 1.90mm height.

✓ Total Stock: 19 pcs

$ Price Range: $1.13

7717-30N Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	19 pcs On Request	19 pcs	On Request	1	On Request	On Request	17+	On Request	On Request

7717-30N Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Component Insulators, Mounts, Spacers
Manufacturer Name	Aavid, Thermal Division of Boyd Corporation
Diameter	9.53mm (0.375")
Height	1.90mm (0.075")
Material	Nylon
Shape	Circular
Type	Mount
Usage	General Purpose - Axial, Radial

View Similar Products (0)

7717-30N Description

Short technical summary and product information.

The 7717-30N is a circular mount manufactured by Aavid, Thermal Division of Boyd Corporation. It is constructed from nylon and features a circular shape with a diameter of 9.53mm (0.375 inches) and a height of 1.90mm (0.075 inches). This mount is designed for general purpose use, accommodating both axial and radial components. It is commonly used in electronic assemblies to provide insulation and spacing between components and the circuit board. The mount is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).

7717-30N Quick Information

Product Type: Mount

Canonical Name: Circular Nylon Mount for General Purpose Axial/Radial Components

Subcategory: Circular Mount

7717-30N Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

7717-30N Estimated Pricing

Qty	Low	High
3,000+	$1.13	$1.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

7717-30N Features

Circular shape with 9.53mm diameter.
Nylon material for insulation.
1.90mm height (0.075 inches).
Designed for axial and radial components.
RoHS3 compliant.

7717-30N Applications

Mounts axial resistors on circuit boards.
Spaces radial capacitors from PCB.
Insulates component leads from board.
Used in general electronic assemblies.
Provides mechanical support for through-hole parts.

7717-30N FAQs

7 frequently asked questions generated from this part’s specifications.

Is the 7717-30N RoHS compliant?

Yes, it is RoHS3 compliant.

What is the material of the 7717-30N?

Nylon.

What is the diameter of the 7717-30N?

9.53mm (0.375 inches).

What is the height of the 7717-30N?

1.90mm (0.075 inches).

What is the shape of the 7717-30N?

Circular.

What is the usage of the 7717-30N?

General purpose for axial and radial components.

What is the MSL level of the 7717-30N?

MSL 1 (Unlimited).
