| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Between Board Height | |
| Diameter | |
| Gender | |
| Length | |
| Material | |
| Military Grade | |
| Screw, Thread Size | |
| Tape & Reel | |
| Threaded | |
| Type |

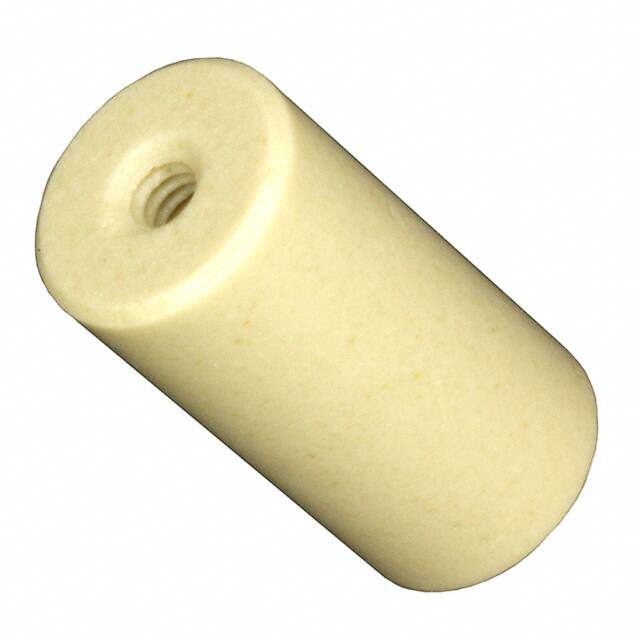

This Keystone Electronics 7716 is a round standoff designed for spacing and supporting printed circuit boards. It features a female-female gender with #6-32 threading on both ends, allowing secure mounting with screws. The standoff has a length of 1.000" (25.4mm) between boards and an outer diameter of 0.500" (12.7mm). It is made from Grade L5 ceramic, providing electrical insulation and mechanical stability.
The standoff is threaded throughout its length, with a thread depth of 0.375" (9.5mm) as confirmed by the datasheet. It is packaged in bulk, suitable for manual assembly or automated processes. The component is rated RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited floor life), though these compliance claims are unverified.
Typical applications include PCB mounting, spacing, and stacking in electronic assemblies where non-conductive support is required. The ceramic material offers high temperature resistance and low thermal expansion, making it suitable for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.10 | $6.10 |
| 10+ | $5.09 | $5.09 |
| 25+ | $4.92 | $4.92 |
| 100+ | $4.69 | $4.69 |
| 500+ | $4.34 | $4.34 |
| 1,000+ | $3.15 | $3.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
#6-32
Ceramic (Grade L5)
1.000" (25.4mm)
Yes, threaded.
Female, Female
Bulk
RoHS3 compliant (unverified)
