| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

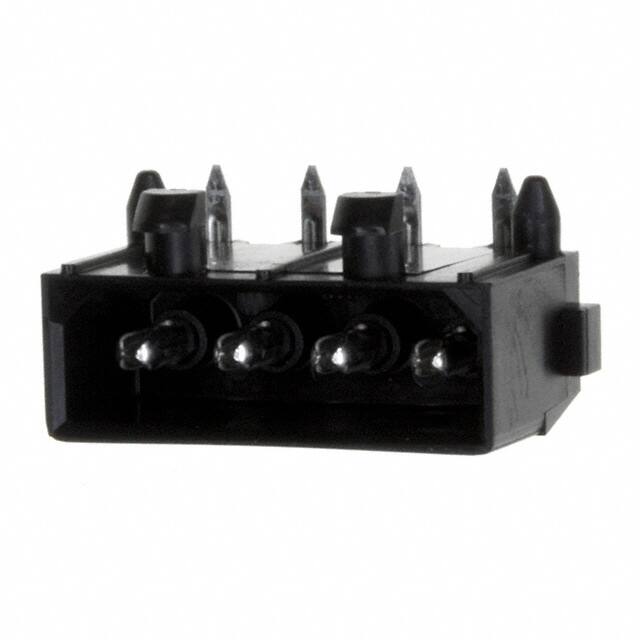

The TE Connectivity 770846-1 is a 4-position male pin header connector designed for board-to-cable/wire applications. It features a right-angle through-hole mounting style with a pitch of 5.08mm (0.200 inches). The connector is part of TE's shrouded header family, featuring a 4-wall shrouding for enhanced protection and alignment.
The header is rated for 15A current and 250VAC voltage, with an operating temperature range of -55°C to 105°C. The contacts are made of phosphor bronze with a tin finish, ensuring reliable electrical performance. The insulation is black polyamide (nylon) with a UL94 V-2 flammability rating.
The connector includes a board guide and board lock for secure mounting, as well as a detent lock mechanism for mating retention. All 4 positions are loaded, and the contact length is 3.56mm (0.140 inches). The header is terminated by solder and is RoHS3 compliant.
This header is suitable for use in power supplies, industrial controls, and consumer electronics where reliable board-to-wire connections are required. The 5.08mm pitch provides ample spacing for higher voltage applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.49 | $3.49 |
| 10+ | $2.77 | $2.77 |
| 25+ | $2.71 | $2.71 |
| 100+ | $2.36 | $2.36 |
| 200+ | $2.22 | $2.22 |
| 600+ | $2.09 | $2.09 |
| 1,000+ | $1.93 | $1.93 |
| 2,600+ | $1.88 | $1.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
5.08mm (0.200 inches).
15A.
250VAC.
Through hole, right angle.
-55°C to 105°C.
Yes, it features a shrouded 4-wall design.
