| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
454 pcs
|
454 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

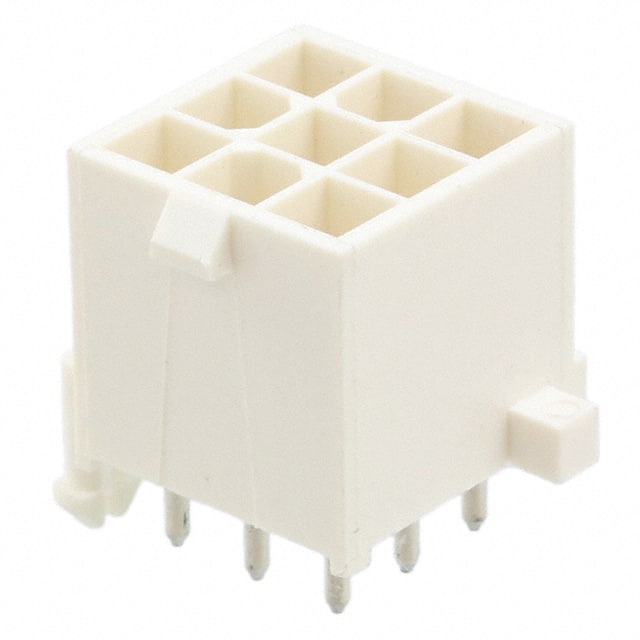

The TE Connectivity 770182-2 is a 9-position, 3-row header designed for board-to-cable/wire connections. It features a shrouded 4-wall housing with a locking ramp for secure mating and a through hole solder termination for reliable PCB mounting.
Electrical specifications include a voltage rating of 600VAC and an operating temperature range of -20°C to 105°C. The current rating varies by wire gauge. Contacts are made of brass with a tin-lead plating (0.76µm). The insulation material is polyamide (PA) nylon with a UL94 V-0 flammability rating, and the housing is white.
This header includes a board lock feature for additional PCB retention. The 4.14mm pitch and row spacing provide a standard density layout for power and signal applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.68 | $5.68 |
| 10+ | $5.17 | $5.17 |
| 25+ | $4.89 | $4.89 |
| 50+ | $4.78 | $4.78 |
| 100+ | $4.69 | $4.69 |
| 200+ | $3.98 | $3.98 |
| 600+ | $3.87 | $3.87 |
| 1,000+ | $2.79 | $2.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 9 positions arranged in 3 rows.
The pitch is 4.14mm, with the same row spacing.
It is rated for 600VAC.
Through hole mount with solder termination.
-20°C to 105°C.
Brass contacts with Tin-Lead plating, 0.76µm thick.
UL94 V-0 rated insulation of Polyamide (PA) Nylon.
