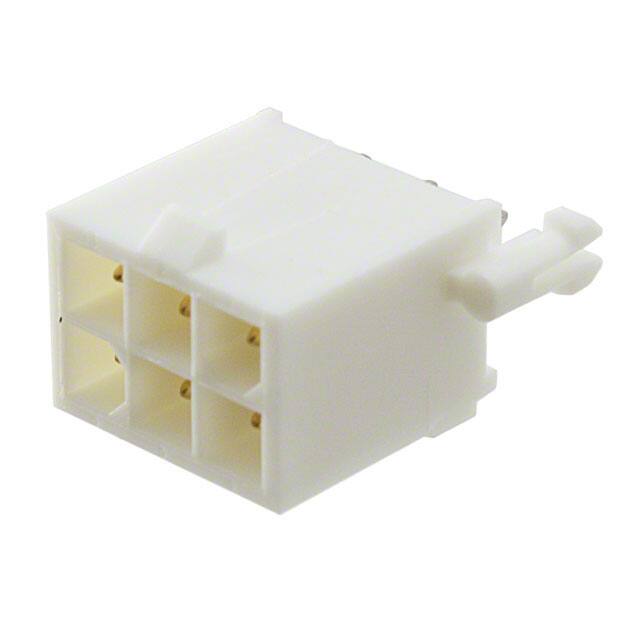

770178-2 TE Connectivity 770178-2 is a 6-position, 2-row, 4.14mm pitch shrouded header connector. It features through hole mounting, male pin contacts with tin-lead finish, and a locking ramp fastening type.
Mfr Part #:

770178-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 770178-2 is a 6-position, 2-row, 4.14mm pitch shrouded header connector. It features through hole mounting, male pin contacts with tin-lead finish, and a locking ramp fastening type.
✓ Total Stock: 153 pcs
$ Price Range: $1.69 - $2.76

770178-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
153 pcs
On Request
153 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

770178-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

770178-2 Description

Short technical summary and product information.

The TE Connectivity 770178-2 is a 6-position, 2-row rectangular header designed for board-to-cable/wire applications. It features a 4.14mm pitch and a shrouded 4-wall housing for robust mating protection. The header uses through hole solder termination and includes a locking ramp for secure retention during operation. Contacts are brass with a tin-lead finish (0.76µm) and the insulation is white polyamide (nylon) rated UL94 V-0. Additional features include a board lock for enhanced PCB attachment. Rated voltage is 600VAC, and the operating temperature range is -20°C to 105°C. This header is suitable for power and signal interconnects in various electronic systems.

770178-2 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 770178-2 Header, Male Pins, 6 Position, 2 Row, 4.14mm Pitch, Shrouded, Through Hole
Subcategory: Male Pins

770178-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

770178-2 Estimated Pricing

Qty Low High
1+ $2.76 $2.76
10+ $2.35 $2.35
200+ $1.90 $1.90
600+ $1.76 $1.76
1,000+ $1.69 $1.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

770178-2 Features

  • 6-position, 2-row shrouded header.
  • 4.14mm pitch for compact designs.
  • Through hole solder termination.
  • Locking ramp for secure mating.
  • Board lock for PCB retention.

770178-2 Applications

  • Used in board-to-cable/wire connections.
  • Ideal for power supply applications.
  • Suitable for automotive and industrial control.
  • Common in consumer electronics wiring.

770178-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

6 positions.

What is the pitch of this header?

4.14mm (0.163 inches).

Is the header through hole or surface mount?

Through hole mounting.

What is the voltage rating?

600VAC.

What is the operating temperature range?

-20°C to 105°C.

What contact material and finish are used?

Brass contacts with tin-lead finish (0.76µm).

Does it have a locking mechanism?

Yes, a locking ramp fastening type.
