| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

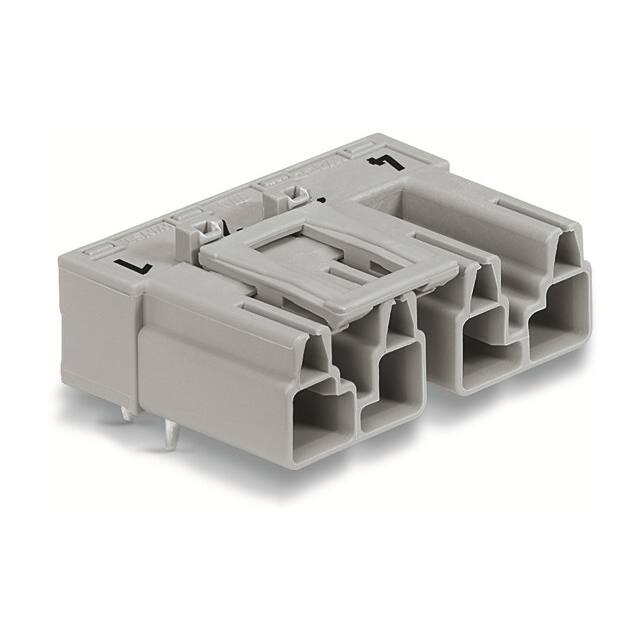

The Wago 770-854/011-000 is a four-pole plug for PCBs from the WINSTA MIDI family. It features male pins and uses Push-in CAGE CLAMP spring pressure connection technology for fast and secure wire termination. The connector has a 10.00mm pitch and is designed for through hole soldering to the PCB. It is rated for a nominal voltage of 600V and a nominal current of 23A (25A according to datasheet), making it robust for industrial control applications. The gray housing includes a locking feature for secure mating. Coding B ensures protection against mismating in multi-connector systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.04 | $4.04 |
| 10+ | $3.44 | $3.44 |
| 100+ | $2.92 | $2.92 |
| 500+ | $2.61 | $2.61 |
| 1,000+ | $2.48 | $2.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions (poles).
The pitch is 10.00mm (0.394 inches).
The rated voltage is 600V.
The nominal current rating is 23A (datasheet states 25A).
It uses through hole mounting with solder termination.
Yes, it includes a locking feature.
It is gray and has coding B for protection against mismating.
