| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

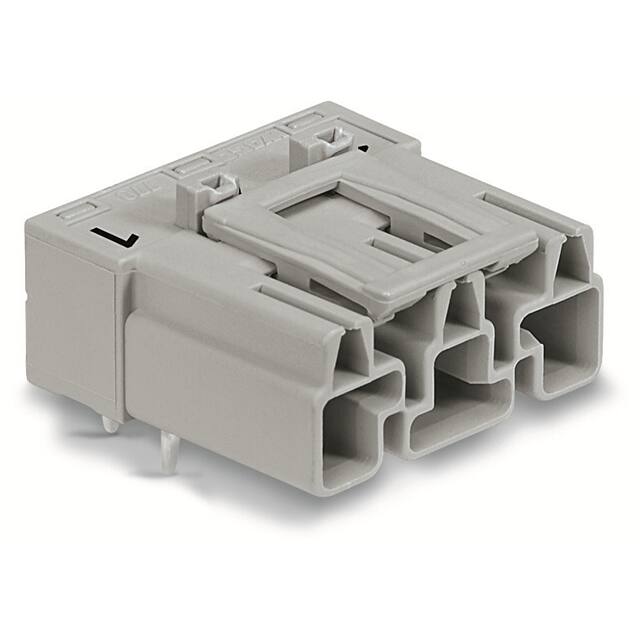

The Wago 770-853/011-000 is a 3-pole male plug from the WINSTA® MIDI series, designed for PCB connection with a 10.00mm pitch. It features Push-in CAGE CLAMP® spring pressure connection technology for fast, tool-free wiring. The plug has a 180° wire entry and includes a locking feature for secure mating.
Rated for 25A (datasheet) and 600V, this plug is suitable for high-power building installation applications. The gray housing with B-coding provides mechanical and color coding to prevent mismating. Through hole solder termination ensures reliable PCB attachment.
This component is ideal for use in lighting, pump, and sun blind circuits, where clear circuit differentiation is needed. The WINSTA® MIDI system offers flexibility for various installation requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.46 | $3.46 |
| 10+ | $2.94 | $2.94 |
| 100+ | $2.50 | $2.50 |
| 500+ | $2.23 | $2.23 |
| 1,000+ | $2.12 | $2.12 |
| 5,000+ | $1.89 | $1.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions (3-pole).
The pitch is 10.00mm.
The datasheet specifies a rated current of 25A, while the existing database value is 23A.
The voltage rating is 600V.
It uses through hole mounting with solder termination.
The operating temperature range is -35°C to 85°C.
Yes, it includes a locking feature.
