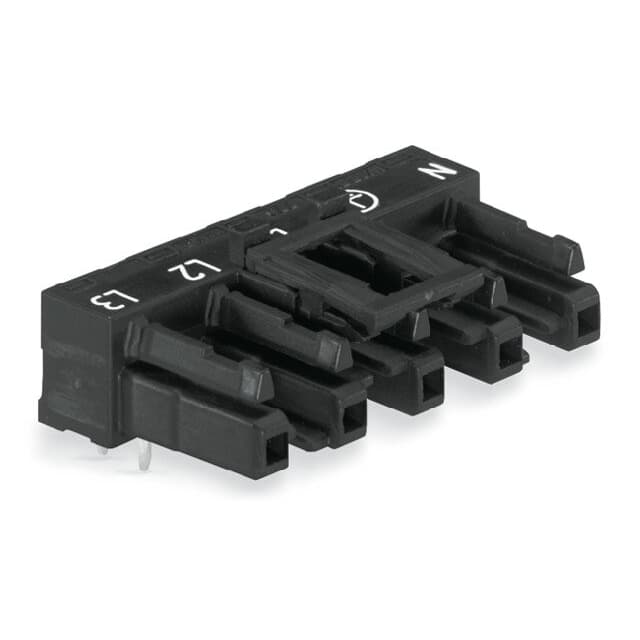

770-805/011-000 Wago 770-805/011-000 is a 5-pole socket for PCBs with a 10mm pitch, rated for 23A and 600V. It features a panel mount design with solder termination and a locking feature.
Mfr Part #:

770-805/011-000

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
Wago 770-805/011-000 is a 5-pole socket for PCBs with a 10mm pitch, rated for 23A and 600V. It features a panel mount design with solder termination and a locking feature.
✓ Total Stock: 50 pcs
$ Price Range: $4.68

770-805/011-000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

770-805/011-000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

770-805/011-000 Description

Short technical summary and product information.

The Wago 770-805/011-000 is a 5-pole female socket for PCBs, part of the WINSTA MIDI pluggable connection system. It features a 10.00mm pitch and is designed for panel mounting with solder termination. The connector is rated for 23A (maximum 25A per datasheet) and 600V, with an operating temperature range of -35°C to 85°C. The black housing includes a locking feature for secure connections. This socket uses Push-in CAGE CLAMP spring pressure connection technology for maintenance-free terminal connections. The mechanical and color coding (Code A) ensures error-free installation and protection against mismating.

770-805/011-000 Quick Information

Product Type: Socket for PCBs
Canonical Name: Wago 770-805/011-000 Socket for PCBs, angled, 5-pole, black
Subcategory: Headers, Plugs and Sockets

770-805/011-000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

770-805/011-000 Estimated Pricing

Qty Low High
1+ $4.68 $4.68

Estimated market price range - modelled values for guidance only, not live distributor offers.

770-805/011-000 Features

  • 5-pole female socket for PCBs.
  • 10.00mm pitch for high-density wiring.
  • Rated for 23A and 600V operation.
  • Panel mount with solder termination.
  • Locking feature for secure connections.

770-805/011-000 Applications

  • Ideal for high-power PCB connections.
  • Used in industrial control panels.
  • Suitable for building automation systems.
  • Perfect for power distribution applications.

770-805/011-000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the Wago 770-805/011-000?

The pitch is 10.00mm.

What is the current rating of this connector?

The current rating is 23A, with a maximum of 25A per the datasheet.

What is the voltage rating?

The voltage rating is 600V.

What mounting type does this socket use?

It is a panel mount connector with solder termination.

How many positions does this connector have?

It has 5 positions in a single level.

What is the operating temperature range?

The operating temperature range is -35°C to 85°C.

Does this connector have a locking feature?

Yes, it includes a locking feature for secure connections.
