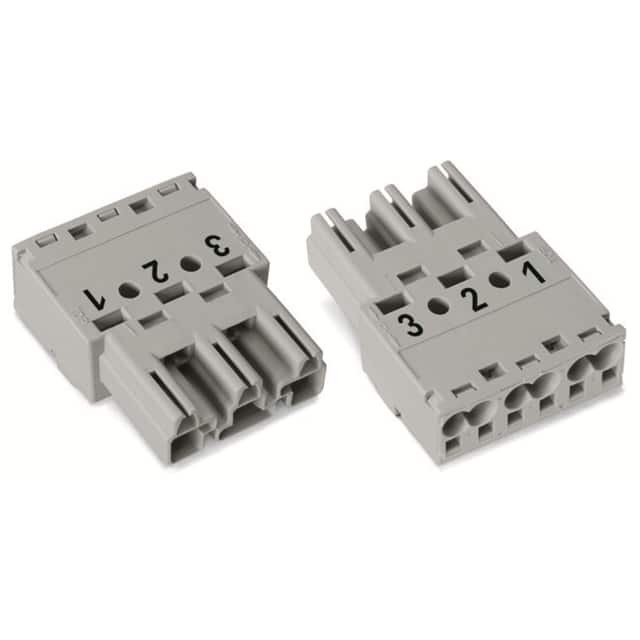

770-253 Wago 770-253 is a 3-pole male plug with push-in spring termination, rated 25A and 600V, with a 10mm pitch and gray color.
Mfr Part #:

770-253

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
Wago 770-253 is a 3-pole male plug with push-in spring termination, rated 25A and 600V, with a 10mm pitch and gray color.
✓ Total Stock: 1 pcs
$ Price Range: $2.53 - $4.40

770-253 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

770-253 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

770-253 Description

Short technical summary and product information.

The Wago 770-253 is a 3-pole male connector/plug from the WINSTA MIDI series, designed for pluggable installation in control cabinets, lighting connections, and PCBs. It features push-in CAGE CLAMP spring pressure connection technology for fast and reliable wiring.



Key specifications include a 10mm pitch, 25A current rating, 600V voltage rating, and support for wire sizes 0.5-4mm². The connector has a free hanging (in-line) mounting type and a 180° plug wire entry. It is color-coded gray and includes a locking feature for secure mating.



The connector offers IP20 protection when mated and secured with a strain relief housing (IP2xC). The B coding prevents mismating, ensuring error-free installation in automation, robotics, and mechanical engineering applications.

770-253 Quick Information

Product Type: Pluggable Installation Connector
Series: 770
Canonical Name: WINSTA MIDI Male Connector/Plug, 3-Pole, Coding B, Gray
Subcategory: Headers, Plugs and Sockets

770-253 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

770-253 Estimated Pricing

Qty Low High
1+ $4.40 $4.40
10+ $3.74 $3.74
25+ $3.50 $3.50
50+ $3.34 $3.34
100+ $3.18 $3.18
250+ $2.98 $2.98
500+ $2.84 $2.84
1,000+ $2.70 $2.70
2,500+ $2.53 $2.53

Estimated market price range - modelled values for guidance only, not live distributor offers.

770-253 Features

  • 3-pole male plug with push-in spring termination.
  • Rated for 25A and 600V operation.
  • 10mm pitch for compact wiring.
  • Gray color with B coding for mismating protection.
  • IP20 protection when mated with strain relief.

770-253 Applications

  • Ideal for control cabinet wiring applications.
  • Used in lighting connection systems.
  • Suitable for PCB pluggable connections.
  • Applied in automation and robotics systems.

770-253 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Wago 770-253 have?

The Wago 770-253 has 3 positions.

What is the pitch of the Wago 770-253?

The pitch is 10.00mm (0.394 inches).

What is the current rating of the Wago 770-253?

The current rating is up to 25 A (datasheet) or 23 A (existing DB).

What is the voltage rating of the Wago 770-253?

The voltage rating is 600 V.

What mounting type does the Wago 770-253 use?

It uses free hanging (in-line) mounting.

What termination style does the Wago 770-253 have?

It uses screwless push-in spring termination (Push-in CAGE CLAMP).

What is the operating temperature range of the Wago 770-253?

The operating temperature range is -35°C to 85°C.
