| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
985 pcs
|
985 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Ingress Protection | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

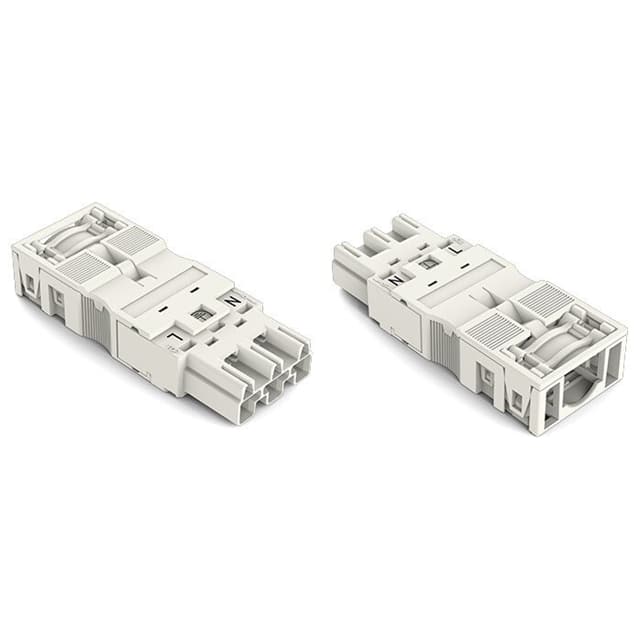

The Wago 770-133 is a pluggable installation connector from the WINSTA MIDI product line. It is a 3-position male plug designed for free hanging (in-line) mounting. The screwless push-in spring termination (Push-in CAGE CLAMP) allows for tool-free and error-free wire connection, accommodating wire sizes from 0.5 to 4 mm² with a maximum strip length of 55 mm. The plug features a 10.00mm pitch and is rated for 25A current and 600V voltage, with an operating temperature range of -35°C to 85°C. It is protected to IP20 when mated and secured with the strain relief housing (IP2xC). The mechanical coding (Code A) and color coding prevent mismating in multi-connector installations. The plug is suitable for general mains applications and high power loads in industrial and building automation.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.87 | $6.87 |
| 10+ | $5.84 | $5.84 |
| 25+ | $5.47 | $5.47 |
| 50+ | $5.21 | $5.21 |
| 100+ | $4.96 | $4.96 |
| 250+ | $4.65 | $4.65 |
| 500+ | $4.43 | $4.43 |
| 1,000+ | $4.22 | $4.22 |
| 2,500+ | $3.95 | $3.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
10.00mm (0.394 inches).
25 A (datasheet value; existing database shows 23 A).
600 V.
Free hanging (in-line).
Screwless push-in spring (Push-in CAGE CLAMP).
0.5 to 4 mm².
