| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
71 pcs
|
71 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Ingress Protection | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

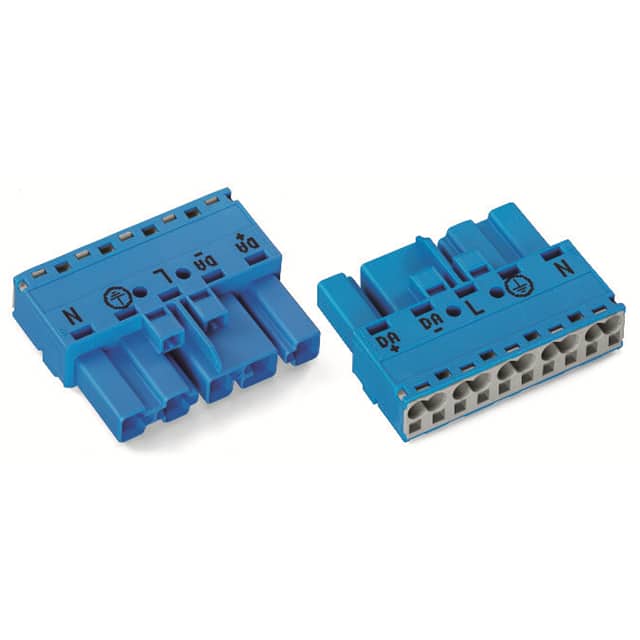

The Wago 770-1115 is a 5-pole male plug (male connector) from the WINSTA MIDI series, designed for pluggable installation in building automation and industrial control applications. It features a screwless Push-In CAGE CLAMP spring pressure connection technology for fast, tool-free wiring of solid or stranded conductors from 0.5 to 4 mm².
This connector is rated for a current of 25 A (datasheet) and a voltage of 600 V, with an operating temperature range of -35°C to 85°C. The 10.00mm pitch provides ample spacing for high-power and signal connections. The plug is color-coded blue (I coding) for use in building automation lighting circuits and offers IP20 protection when mated and secured with a strain relief housing.
Mounting type is free hanging (in-line), and the termination style is screwless push-in spring. Retention latches on the non-wire side ensure secure mating. The connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.24 | $6.24 |
| 10+ | $5.30 | $5.30 |
| 25+ | $4.97 | $4.97 |
| 50+ | $4.73 | $4.73 |
| 100+ | $4.51 | $4.51 |
| 250+ | $4.23 | $4.23 |
| 500+ | $4.02 | $4.02 |
| 1,000+ | $3.83 | $3.83 |
| 2,500+ | $3.59 | $3.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Wago 770-1115 has 5 positions (5 poles).
The pitch is 10.00mm (0.394 inches).
The datasheet states a current rating of 25 A, while the database lists 23 A. Verification with the manufacturer is recommended.
The voltage rating is 600 V.
The mounting type is Free Hanging (In-Line).
It uses screwless push-in spring termination (Push-In CAGE CLAMP).
The operating temperature range is -35°C to 85°C.
