| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
842 pcs
|
842 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

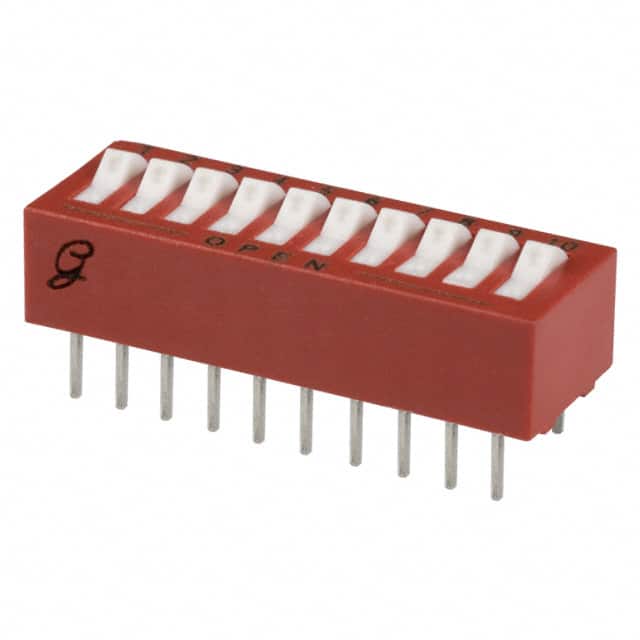

The Grayhill Inc. 76SB10ST is a 10-position Single Pole Single Throw (SPST) DIP switch. It is designed for through-hole mounting and features a raised rocker actuator. The switch has a tape seal for protection and a mechanical life rating of 2,000 cycles.
This DIP switch operates within a temperature range of -40°C to 85°C and has a switch rating of 50 mA at 30 VDC. The contact material is copper alloy with gold plating, and the termination style is PC pin. The pitch is 2.54mm (0.100"), and the height above the board is 0.315" (8.00mm).
It is RoHS3 compliant and has an MSL rating of 1. The 76SB10ST is suitable for applications requiring reliable and durable switching solutions in a compact DIP package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switching capacity is 50mA at 30VDC.
It has 10 positions.
It uses through-hole mounting with PC pins.
-40°C to 85°C.
The contacts are made of copper alloy with a gold finish.
