DistyParts Icon
76SB04T The Grayhill 76SB04T is a SPST DIP switch with 4 positions and Through Hole mounting. It is rated for 30VDC and 150mA.
Mfr Part #:

76SB04T

Available from 2 distributors
Mfr Name: Grayhill Inc.
Grayhill Inc.
The Grayhill 76SB04T is a SPST DIP switch with 4 positions and Through Hole mounting. It is rated for 30VDC and 150mA.
✓ Total Stock: 561 pcs
$ Price Range: $0.75

76SB04T Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
535 pcs
On Request
535 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
26 pcs
On Request
26 pcs On Request 1 On Request On Request 1019 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

76SB04T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Height Above Board
Lead Spacing
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

76SB04T Description

Short technical summary and product information.

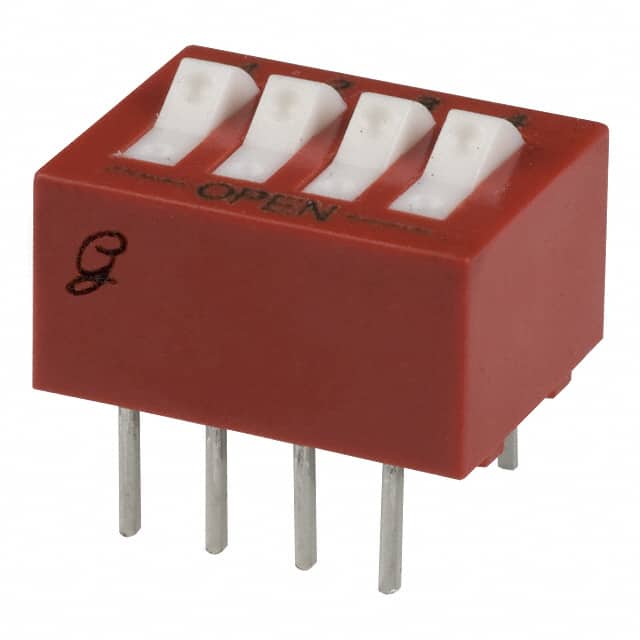

The Grayhill 76SB04T is a Single Pole Single Throw (SPST) DIP switch designed for through-hole mounting. It features 4 positions and a rocker-style actuator with a raised profile.



This switch operates at a voltage rating of 30VDC and a current rating of 150mA. The contact material is Copper Alloy with a Gold finish, ensuring reliable connections. The pitch is 2.54mm (0.100"). The operating temperature range is -40°C to 85°C.



With a sealed base life rating of 2,000 actuations, the 76SB04T is suitable for various applications requiring simple on/off switching. Its through-hole termination style and standard dimensions make it easy to integrate into PCB designs. The switch is RoHS3 compliant.



Key specifications include a 4-position configuration, SPST circuitry, and a height above board of 0.315" (8.00mm). The operating temperature range is -40°C to 85°C, and it is not washable.

76SB04T Quick Information

Product Type: DIP Switch
Series: 76
Canonical Name: Grayhill 76SB04T SPST Thru-Hole DIP Switch
Subcategory: Thru-Hole DIP Switch

76SB04T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

76SB04T Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

76SB04T Features

  • 4-position SPST DIP switch.
  • Through Hole mounting type.
  • 30VDC voltage rating.
  • 150mA current rating.
  • Gold contact finish.

76SB04T Applications

  • Ideal for PCB circuit configuration.
  • Used for simple on/off switching.
  • Suitable for industrial controls.
  • Applicable in electronic test equipment.

76SB04T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the 76SB04T DIP switch?

The operating voltage for the 76SB04T DIP switch is 30VDC.

What is the RoHS status of the 76SB04T?

The 76SB04T is RoHS3 Compliant.

What is the operating temperature range for the 76SB04T?

The operating temperature range for the 76SB04T is -40°C to 85°C.

How many positions does the 76SB04T DIP switch have?

The 76SB04T DIP switch has 4 positions.

What type of mounting does the 76SB04T use?

The 76SB04T uses Through Hole mounting.

What is the current rating of the 76SB04T switch?

The current rating of the 76SB04T switch is 150mA.

What is the mechanical life cycle of the 76SB04T?

The mechanical life cycle of the 76SB04T is 2000 cycles.

Home
Account

Categories
