| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,800 pcs
|
18800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

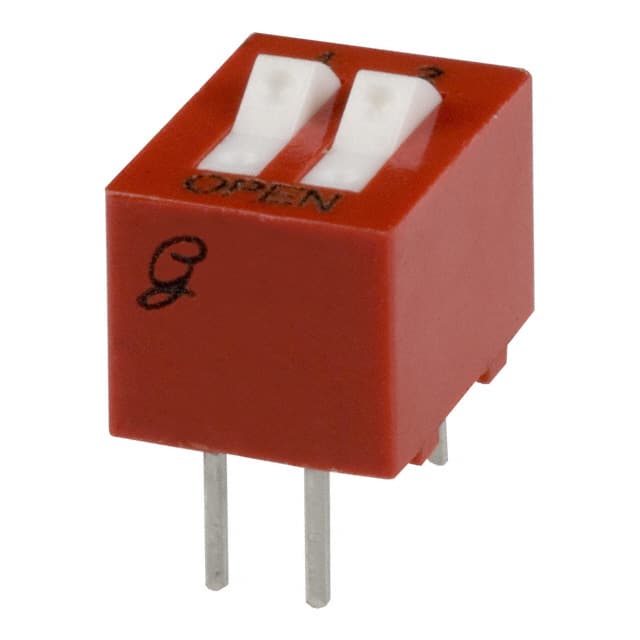

The Grayhill Inc. 76SB02ST is a SPST (Single Pole Single Throw) DIP Switch designed for reliable operation. It features 2 positions and a Rocker actuator with a raised level.
This switch is rated for 150mA at 30VDC and has a contact finish of Gold over a Copper Alloy contact material. The mounting type is Through Hole with a PC Pin termination style. It has a pitch of 2.54mm (0.100").
Environmental specifications include an operating temperature range of -40°C to 85°C and it is marked as washable. The switch also features a Tape Seal for protection. Its mechanical life cycle is rated for 2,000 actuations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 76SB02ST DIP switch features SPST circuitry.
The 76SB02ST DIP switch has 2 positions.
The switch is rated for 150mA at 30VDC.
The 76SB02ST DIP switch uses a Rocker actuator.
The operating temperature range is -40°C to 85°C.
Yes, the 76SB02ST DIP switch features a tape seal.
