| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
972 pcs
|
972 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Switch Type | |
| Termination Style | |
| Voltage Rating | |
| Washable |

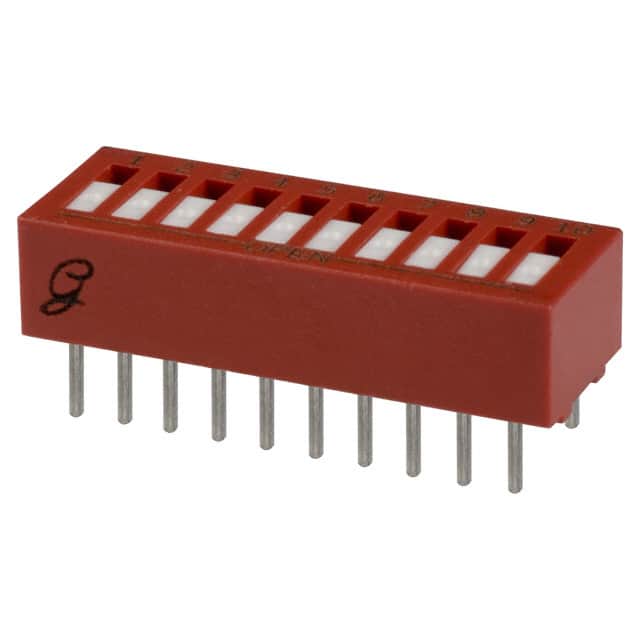

The Grayhill 76RSB10ST is a 10-position Single Pole Single Throw (SPST) DIP switch. It is designed for through-hole mounting and features a tape seal for enhanced protection during handling and soldering processes. The switch operates with a current rating of 150mA at 30VDC and has gold-plated copper alloy contacts.
This DIP switch is suitable for applications requiring reliable switching in a compact form factor. Its through-hole mounting ensures a secure connection to the PCB. The rocker actuator provides a tactile and visual indication of the switch position. The operating temperature range is -40°C to 85°C, making it suitable for various environmental conditions.
Key specifications include a 2.54mm pitch and a height above board of 7.41mm. The mechanical life cycle is rated for 2,000 actuations. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 76RSB10ST DIP switch features SPST (Single Pole Single Throw) circuitry.
The 76RSB10ST DIP switch has 10 positions.
The switch rating for the 76RSB10ST is 50 mA at 30 VDC.
The operating temperature range for the 76RSB10ST DIP switch is -40°C to 85°C.
Yes, the 76RSB10ST DIP switch is washable.
