76PSB10ST The Grayhill 76PSB10ST is a 10-position, SPST DIP switch designed for through-hole mounting. It features a piano actuator and tape seal.
Mfr Part #:

76PSB10ST

Available from 2 distributors
Mfr Name: Grayhill Inc.
Grayhill Inc.
The Grayhill 76PSB10ST is a 10-position, SPST DIP switch designed for through-hole mounting. It features a piano actuator and tape seal.
✓ Total Stock: 610 pcs
$ Price Range: $0.75

76PSB10ST Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
585 pcs
On Request
585 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

76PSB10ST Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Features
Height Above Board
Lead Spacing
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

76PSB10ST Description

Short technical summary and product information.

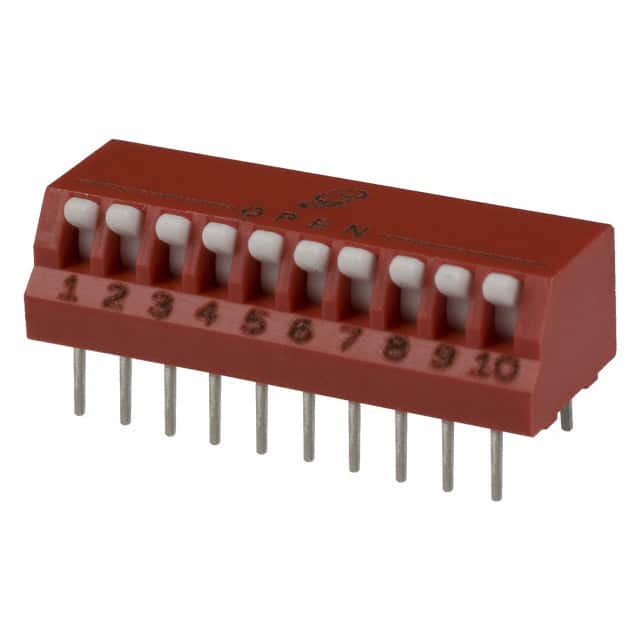

The Grayhill 76PSB10ST is a 10-position Single Pole Single Throw (SPST) DIP switch. It is designed for through-hole mounting with a PC pin termination style and a pitch of 2.54mm (0.100").



This switch operates at a voltage rating of 30VDC and a current rating of 150mA. It features a piano actuator that is raised and has a tape seal for protection. The operating temperature range is -40°C to 85°C.



The mechanical life is rated for 2,000 cycles. The switch has a height above the board of 7.65mm (0.301"). It is also specified as washable.

76PSB10ST Quick Information

Product Type: DIP Switch
Series: 76
Canonical Name: Grayhill 76PSB10ST SPST Thru-Hole DIP Switch
Subcategory: Thru-Hole DIP Switch

76PSB10ST Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

76PSB10ST Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

76PSB10ST Features

  • 10 position SPST DIP switch.
  • Through-hole mounting with PC pin termination.
  • Rated for 30VDC and 150mA.
  • Piano actuator with tape seal.
  • Operates from -40°C to 85°C.

76PSB10ST Applications

  • Ideal for board-level switching.
  • Used in control and configuration circuits.
  • Suitable for harsh environment applications.
  • Provides reliable circuit selection.

76PSB10ST FAQs

5 frequently asked questions generated from this part’s specifications.
What is the voltage and current rating for the 76PSB10ST DIP switch?

The 76PSB10ST DIP switch has a voltage rating of 30VDC and a current rating of 150mA.

How many positions does the 76PSB10ST DIP switch have?

The 76PSB10ST DIP switch has 10 positions.

What is the mechanical life of the 76PSB10ST DIP switch?

The mechanical life of the 76PSB10ST DIP switch is 2,000 cycles.

What is the operating temperature range for this DIP switch?

The operating temperature range for the 76PSB10ST DIP switch is -40°C to 85°C.

Does the 76PSB10ST DIP switch have a tape seal?

Yes, the 76PSB10ST DIP switch features a tape seal.
