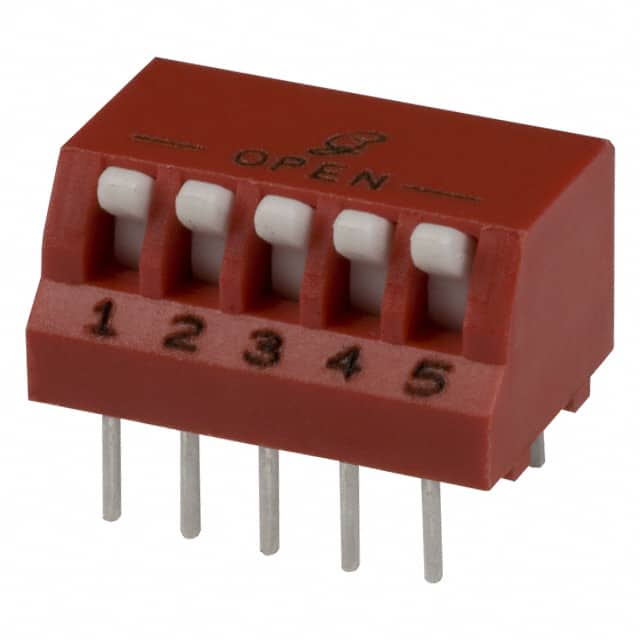

76PSB05ST The Grayhill Inc. 76PSB05ST is a SPST DIP Switch designed for through-hole mounting. It features a piano actuator and tape seal.
Mfr Part #:

76PSB05ST

Available from 1 distributors
Mfr Name: Grayhill Inc.
Grayhill Inc.
The Grayhill Inc. 76PSB05ST is a SPST DIP Switch designed for through-hole mounting. It features a piano actuator and tape seal.
✓ Total Stock: 126 pcs
$ Price Range: $0.75

76PSB05ST Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
126 pcs
On Request
126 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

76PSB05ST Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Features
Height Above Board
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

76PSB05ST Description

Short technical summary and product information.

The Grayhill Inc. 76PSB05ST is a Single Pole Single Throw (SPST) DIP Switch. It is designed for through-hole mounting with a right-angle option and a pitch of 2.54mm (0.100").



This switch has 5 positions and a piano actuator. It is rated for 50 mA at 30 VDC and has a mechanical life cycle of 2,000 actuations. The operating temperature range is -40°C to 85°C.



The 76PSB05ST features a tape seal for protection and is washable. Its termination style is PC Pin, and it has a height above board of 7.65mm (0.301").



This component is RoHS3 compliant and has an MSL rating of 1.

76PSB05ST Quick Information

Product Type: DIP Switch
Series: 76 SPST
Canonical Name: Grayhill Inc. 76PSB05ST SPST Thru-Hole DIP Switch
Subcategory: Thru-Hole DIP Switch

76PSB05ST Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

76PSB05ST Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

76PSB05ST Features

  • SPST circuitry for simple switching.
  • 5 positions for configuration.
  • Rated for 50 mA at 30 VDC.
  • Through-hole mounting with right angle.
  • Washable design for process compatibility.

76PSB05ST Applications

  • Ideal for board-level configuration.
  • Used in electronic test equipment.
  • Suitable for industrial control systems.
  • Applicable in telecommunications devices.

76PSB05ST FAQs

7 frequently asked questions generated from this part’s specifications.
What is the circuit type of the 76PSB05ST DIP switch?

The 76PSB05ST DIP switch features SPST (Single Pole Single Throw) circuitry.

How many positions does the 76PSB05ST switch have?

The 76PSB05ST switch has 5 positions.

What is the switching capacity of the 76PSB05ST?

The switch rating for the 76PSB05ST is 50 mA at 30 VDC.

What is the mechanical life cycle of the 76PSB05ST?

The 76PSB05ST has a mechanical life cycle of 2,000 cycles.

What is the operating temperature range for the 76PSB05ST?

The operating temperature range for the 76PSB05ST is -40°C to 85°C.

What type of actuator does the 76PSB05ST use?

The 76PSB05ST uses a piano actuator.

Is the 76PSB05ST washable?

Yes, the 76PSB05ST is washable.
