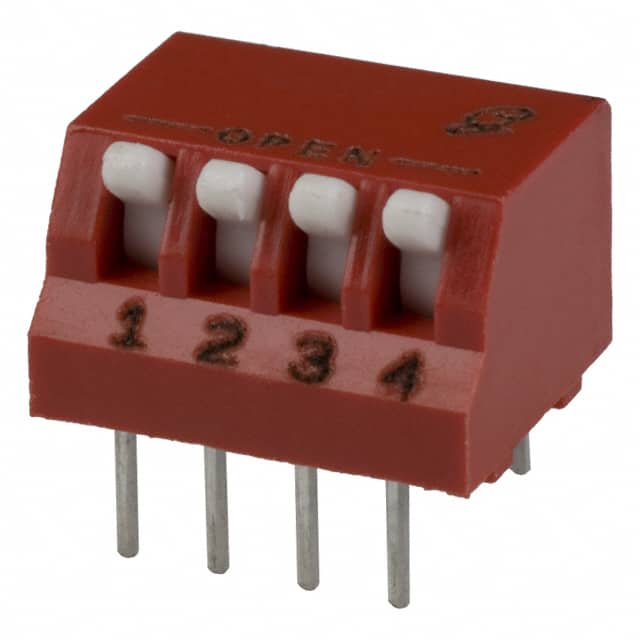

76PSB04ST The Grayhill Inc. 76PSB04ST is a SPST DIP switch with 4 positions. It features a tape seal and is designed for through-hole mounting.
Mfr Part #:

76PSB04ST

Available from 1 distributors
Mfr Name: Grayhill Inc.
Grayhill Inc.
The Grayhill Inc. 76PSB04ST is a SPST DIP switch with 4 positions. It features a tape seal and is designed for through-hole mounting.
✓ Total Stock: 5,003 pcs
$ Price Range: $0.75

76PSB04ST Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
5,003 pcs
On Request
5003 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

76PSB04ST Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating
Current Rating (Amps)
Features
Height Above Board
Mounting Type
Number of Positions
Operating Temperature
Pitch
Switch Type
Termination Style
Voltage Rating
Washable
View Similar Products (0)

76PSB04ST Description

Short technical summary and product information.

The Grayhill Inc. 76PSB04ST is a Single Pole Single Throw (SPST) Dual In-line Package (DIP) switch. It offers 4 positions and is rated for 50 mA at 30 VDC, with a mechanical life cycle of 2000 actuations. The switch features a tape seal for protection and a raised actuator.



Designed for through-hole mounting with a right-angle option, the 76PSB04ST has a pitch of 2.54mm (0.100 inches). Its contact material is copper alloy with gold plating, and it operates within a temperature range of -40°C to 85°C. The height above the board is 7.65mm (0.301 inches).



This switch is washable and has a sealed base life rating of 2,000 cycles. It is RoHS3 compliant, has an MSL of 1, and is REACH unaffected. The Grayhill 76PSB04ST is suitable for various electronic applications requiring reliable switching.

76PSB04ST Quick Information

Product Type: DIP Switch
Series: 76 SPST
Canonical Name: Grayhill Inc. 76PSB04ST SPST Piano-DIP Switch
Subcategory: SPST

76PSB04ST Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

76PSB04ST Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

76PSB04ST Features

  • SPST circuitry with 4 positions.
  • Rated for 50 mA at 30 VDC.
  • Through-hole mounting with right-angle option.
  • Features a tape seal for protection.
  • Operates from -40°C to 85°C.

76PSB04ST Applications

  • Ideal for board-level switching.
  • Used in control and instrumentation.
  • Suitable for automated assembly.
  • Provides reliable circuit selection.

76PSB04ST FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the 76PSB04ST switch?

The switch is rated for 30VDC operation.

What mounting type does the 76PSB04ST use?

It uses thru-hole mounting with a right-angle configuration.

What is the operating temperature range for the 76PSB04ST?

-40°C to 85°C.

Is the 76PSB04ST RoHS compliant?

Yes, it is RoHS3 compliant.
