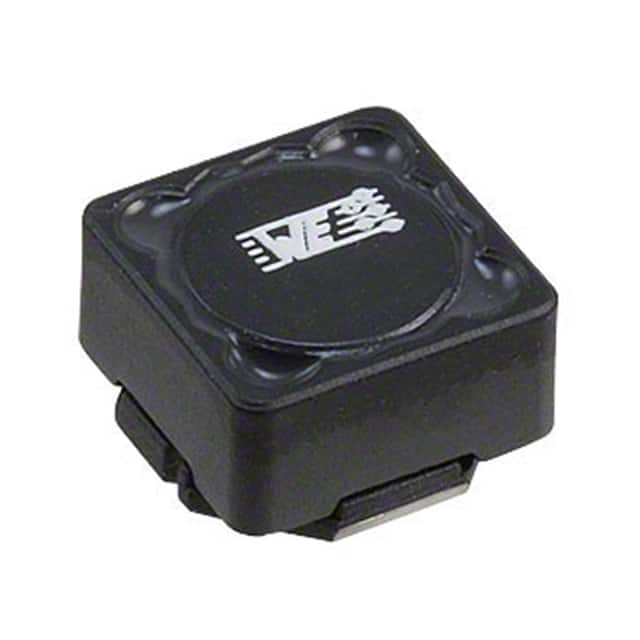

The 7687714102 is a shielded wirewound surface-mount power inductor from Würth Elektronik, part of the WE-PD HV series. It offers a nominal inductance of 1000 µH (measured at 100 kHz/250 mV) with a tolerance of ±20%. The component is rated for a maximum DC current of 0.4 A (based on a 40 K temperature rise) and has a typical saturation current of 0.55 A (at 10% inductance drop).
This inductor features a typical DC resistance of 2700 mΩ and a maximum of 3200 mΩ at 20 °C. Its self-resonant frequency is typically 1.7 MHz, and it can withstand a maximum operating voltage of 400 V. The component is designed for a wide operating temperature range from -40 °C to +125 °C, with an ambient temperature range (referring to IR) of -40 °C to +85 °C.
The 7687714102 comes in a nonstandard SMD package measuring 10.00 mm x 10.00 mm with a height of 6.00 mm. It is shielded to reduce electromagnetic interference and is suitable for power supply and filtering applications in general electronic equipment. The component is RoHS3 compliant, REACH conform or declared, and halogen free, with a moisture sensitivity level of 1 (unlimited floor life).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.72 | $2.72 |
| 10+ | $2.59 | $2.59 |
| 50+ | $2.50 | $2.50 |
| 100+ | $2.41 | $2.41 |
| 250+ | $2.15 | $2.15 |
| 500+ | $1.97 | $1.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1000 µH (1 mH) measured at 100 kHz/250 mV, with a tolerance of ±20%.
The rated current is 0.4 A maximum, based on a temperature rise of 40 K.
The typical DC resistance is 2700 mΩ, with a maximum of 3200 mΩ at 20 °C.
The self-resonant frequency is typically 1.7 MHz.
The package is nonstandard SMD, measuring 10.00 mm x 10.00 mm with a height of 6.00 mm.
The operating temperature range is -40 °C to +125 °C.
Yes, it is RoHS3 compliant according to directive 2011/65/EU and 2015/863.
