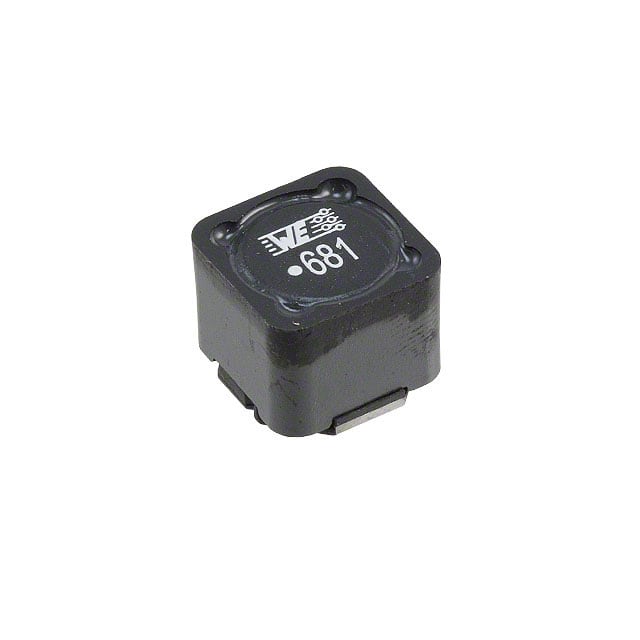

The 7687709681 is a shielded wirewound surface-mount power inductor from Würth Elektronik's WE-PD HV series, designed for high-voltage applications. It offers an inductance of 680 µH with ±20% tolerance, a rated current of 0.8 A (ΔT = 40 K), and a saturation current of 1.2 A typical. The DC resistance is 950 mΩ typical and 1150 mΩ maximum at 20°C.
This inductor features a self-resonant frequency of 1.5 MHz typical and is rated for an operating voltage of 400 V max, with 400 VDC surge proof capability. It operates over a temperature range of -40°C to +125°C, with an ambient temperature range of -40°C to +85°C referring to rated current.
The component comes in a nonstandard surface-mount package measuring 12.0 mm × 12.0 mm with a maximum height of 10.5 mm. It is shielded to minimize electromagnetic interference and uses wirewound construction for reliable performance in power applications.
The 7687709681 is RoHS compliant (2011/65/EU & 2015/863), REACH conform or declared, halogen-free per JEDEC JS709B, and has a moisture sensitivity level of 1 (unlimited). It is suitable for use in general electronic equipment.
The inductance is 680 µH with ±20% tolerance, tested at 100 kHz and 250 mV.
The rated current is 0.8 A maximum, measured at ΔT = 40 K.
The DC resistance is 950 mΩ typical and 1150 mΩ maximum at 20°C.
The self-resonant frequency is 1.5 MHz typical.
The package is nonstandard surface-mount, measuring 12.0 mm × 12.0 mm with a maximum height of 10.5 mm.
The operating temperature range is -40°C to +125°C.
Yes, it is RoHS compliant per 2011/65/EU & 2015/863.
