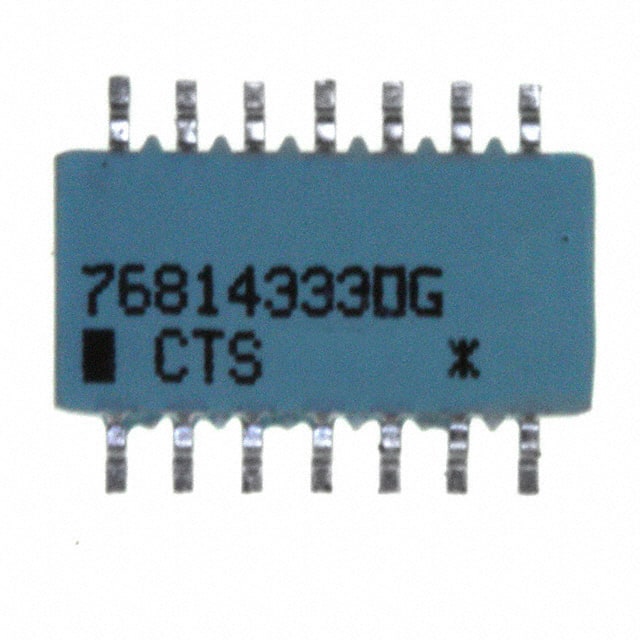

768143330G The CTS Electronic Components 768143330G is a 7-resistor network array with a resistance of 33 Ohms and a tolerance of ±2%. It features a 14-SOIC surface mount package.
Mfr Part #:

768143330G

Available from 1 distributors
Mfr Name: CTS Resistor Products
CTS Resistor Products
The CTS Electronic Components 768143330G is a 7-resistor network array with a resistance of 33 Ohms and a tolerance of ±2%. It features a 14-SOIC surface mount package.
✓ Total Stock: 104 pcs
$ Price Range: $0.05

768143330G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
HMB Electronics LLC ✓
Non-Authorised Inventory information
104 pcs
On Request
104 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

768143330G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit Type
Height
Length
Mounting Type
Number of Pins
Number of Resistors
Operating Temperature
Power Per Element
Resistance (Ohms)
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

768143330G Description

Short technical summary and product information.

This CTS Electronic Components 768143330G is a resistor network array designed for surface mount applications. It comprises 7 isolated resistors, each rated for 200mW of power, with a nominal resistance of 33 Ohms and a tolerance of ±2%. The network operates within a temperature range of -55°C to 125°C, with a temperature coefficient of ±200ppm/°C.



The component is housed in a 14-SOIC package, measuring 9.91mm in length and 5.59mm in width, with a height of 1.80mm. The mounting type is surface mount, making it suitable for automated assembly processes.



Key electrical characteristics include its isolated circuit type and the specified resistance and tolerance values. The operating temperature range and temperature coefficient are important considerations for applications requiring stable performance under varying thermal conditions.

768143330G Quick Information

Product Type: Resistor Network/Array
Series: 768
Canonical Name: CTS Resistor Products 768143330G Resistor Network/Array
Subcategory: Resistor Array

768143330G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

768143330G Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

768143330G Features

  • Seven isolated resistors in one package.
  • 33 Ohm resistance with ±2% tolerance.
  • 200mW power rating per element.
  • Operates from -55°C to 125°C.
  • Surface mount 14-SOIC package.

768143330G Applications

  • Suitable for general purpose circuits.
  • Used in signal conditioning applications.
  • Ideal for compact electronic designs.
  • Component for automated PCB assembly.

768143330G FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the 768143330G resistor network?

The resistance value is 33 Ohms.

What is the tolerance of the resistors in the 768143330G network?

The tolerance is ±2%.

How many resistors are included in the 768143330G network array?

There are 7 resistors in the network array.

What is the package type for the 768143330G?

The package type is 14-SOIC (0.220", 5.59mm Width).

What is the operating temperature range for the 768143330G?

The operating temperature range is -55°C to 125°C.

What is the power rating per element for this resistor network?

The power per element is 200mW.
