| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Type | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance (Ohms) | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

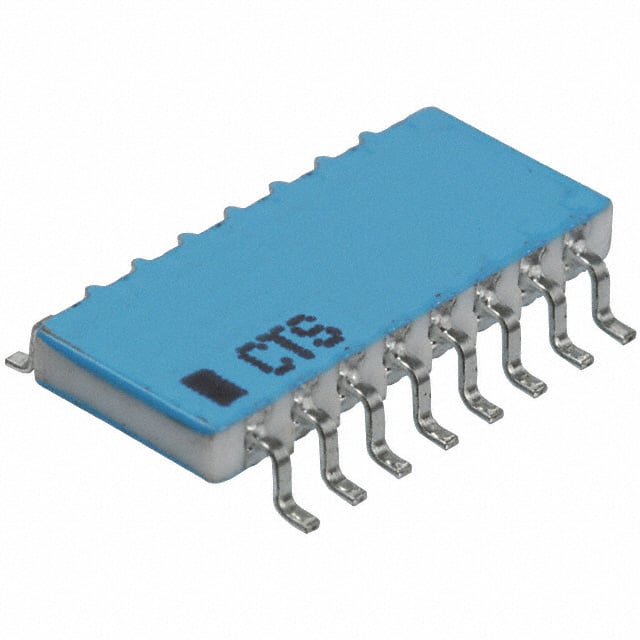

The CTS 767161511G is a surface mount resistor network from the 767 series, designed for applications requiring an array of homogeneous resistor elements in a single package. This component features 15 resistors, each with a resistance value of 510 Ohms and a tolerance of ±2%. The network is housed in a 16-SOIC package with dimensions of 11.18mm x 5.59mm, and a height of 2.36mm.
With a power rating of 100mW per element and an operating temperature range of -55°C to 125°C, this resistor network is suitable for various electronic designs. The bussed circuit configuration and ±100ppm/°C temperature coefficient contribute to its reliability and performance. Its surface mount design facilitates automated assembly processes.
Applications for this resistor network include telecom infrastructure, optical networking, wireless networks, edge routers, internet/network security, storage area networks, network-attached storage, switches, and RAID controllers. The compact design requires less board space compared to individual resistors.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 767161511G resistor network has a resistance value of 510 Ohms.
The resistors in the 767161511G network have a tolerance of ±2%.
The 767161511G resistor network contains 15 resistors.
The 767161511G resistor network features a bussed circuit type.
The 767161511G resistor network operates within a temperature range of -55°C to 125°C.
The 767161511G resistor network is supplied in a 16-SOIC package.
Yes, the 767161511G resistor network is RoHS3 compliant.
