| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

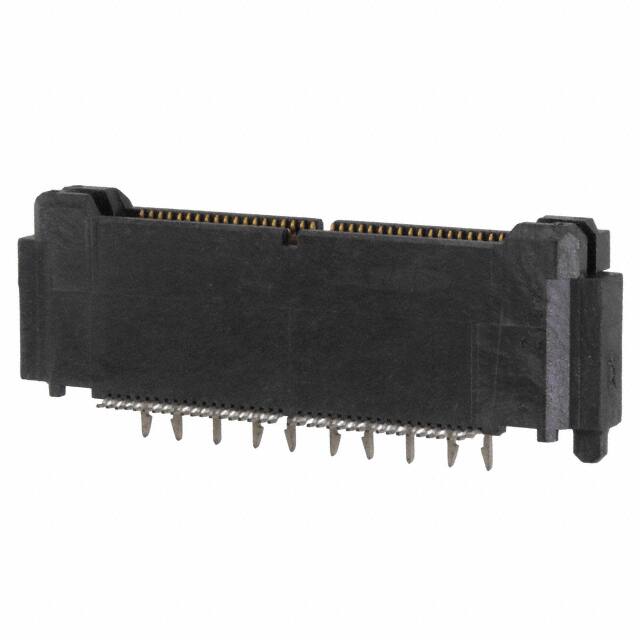

The TE Connectivity 767057-2 is a plug connector with outer shroud contacts designed for board-to-board or mezzanine applications. It has 76 positions arranged in 2 rows with a pitch of 0.64mm (0.025 inches). The connector is surface mount compatible and has a palladium-nickel contact finish with a thickness of 5.00µin. The height above board is 0.484 inches (12.29mm), and it supports mated stacking heights of 12.57mm and 21.6mm. Features include a board guide and ground bus (plane).
This connector is suitable for applications requiring high-density interconnections in a compact form factor. The surface mount design allows for automated assembly. The palladium-nickel finish provides reliable contact performance. The board guide aids in alignment during mating, while the ground bus plane helps with grounding and signal integrity.
The connector has 76 positions arranged in 2 rows.
The pitch is 0.64mm (0.025 inches).
Surface mount.
Palladium-nickel with a thickness of 5.00µin (0.127µm).
Board guide and ground bus (plane).
Mated stacking heights of 12.57mm and 21.6mm.
0.484 inches (12.29mm).
