Mfr Part #:

767042-2

Q: What features are included?

Board guide and ground bus (plane).

Q: Is this connector RoHS compliant?

No, it is not compliant with EU RoHS Directive 2011/65/EU due to lead (Pb) content.

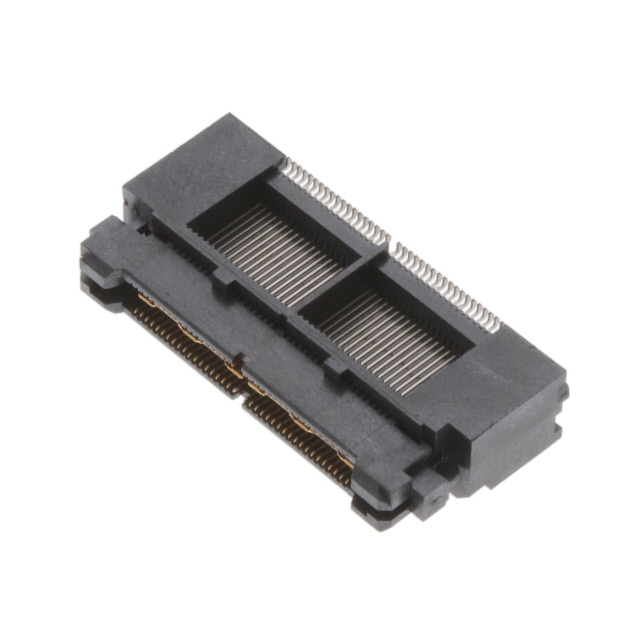

TE Connectivity 767042-2 plug connector with outer shroud contacts, 76 positions in 2 rows at 0.64mm pitch. Surface mount with gold contact finish, suitable for board-to-board stacking heights of 18.75mm and 27.8mm.

✓ Total Stock: 28 pcs

$ Price Range: $62.06 - $64.55

767042-2 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Husky International Electronic ✓ Non-Authorised Inventory information	28 pcs On Request	28 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

767042-2 Description

Short technical summary and product information.

The TE Connectivity 767042-2 is a plug connector with outer shroud contacts designed for board-to-board mezzanine applications. It features 76 positions arranged in 2 rows with a pitch of 0.64mm (0.025 inches), enabling high-density interconnections. The contacts are finished with gold plating of 0.76µm (30.0µin) thickness, ensuring reliable signal integrity.

This connector is surface mount compatible and has a height above board of 18.47mm (0.727 inches). It supports mated stacking heights of 18.75mm and 27.8mm, providing flexibility in system design. Additional features include a board guide for alignment and an integrated ground bus (plane) for improved signal performance.

From a compliance perspective, the 767042-2 is not compliant with EU RoHS Directive 2011/65/EU or EU ELV Directive 2000/53/EC due to the presence of lead (Pb). It is also restricted under China RoHS 2 and contains a REACH SVHC (lead at 40% in component part). The part is classified as low halogen (Br, Cl, F, I < 900 ppm) and BFR/CFR/PVC free. Moisture sensitivity level is listed as 1 (unlimited) but not verified by the datasheet.

Thermally, the connector is capable of withstanding reflow soldering temperatures up to 260°C. The part is active and available in surface mount packaging. No current rating, voltage rating, or operating temperature range are specified in the available data.

767042-2 Quick Information

Product Type: Array Connector

Series: MICT

Canonical Name: TE Connectivity 767042-2 Plug Connector, 76 Pos, 0.64mm Pitch, SMD, Gold

Subcategory: Mezzanine (Board to Board) Connectors

767042-2 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: Non-Compliant

767042-2 Estimated Pricing

Qty	Low	High
14+	$64.55	$64.55
28+	$62.06	$62.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

767042-2 Features

76 positions in 2 rows at 0.64mm pitch.
Gold contact finish with 0.76µm thickness.
Surface mount with 18.47mm height above board.
Supports stacking heights of 18.75mm and 27.8mm.
Includes board guide and ground bus plane.

767042-2 Applications

Used in board-to-board mezzanine connections.
Suitable for high-density signal interconnects.
Ideal for applications requiring ground plane integration.
Common in telecommunications and networking equipment.

767042-2 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TE Connectivity 767042-2 connector have?

76 positions in 2 rows.

What is the pitch of the 767042-2 connector?

0.64mm (0.025 inches).

What is the mounting type for this connector?

Surface mount.

What contact finish is applied?

Gold with 0.76µm thickness.

What are the supported mated stacking heights?

18.75mm and 27.8mm.

What features are included?
