| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

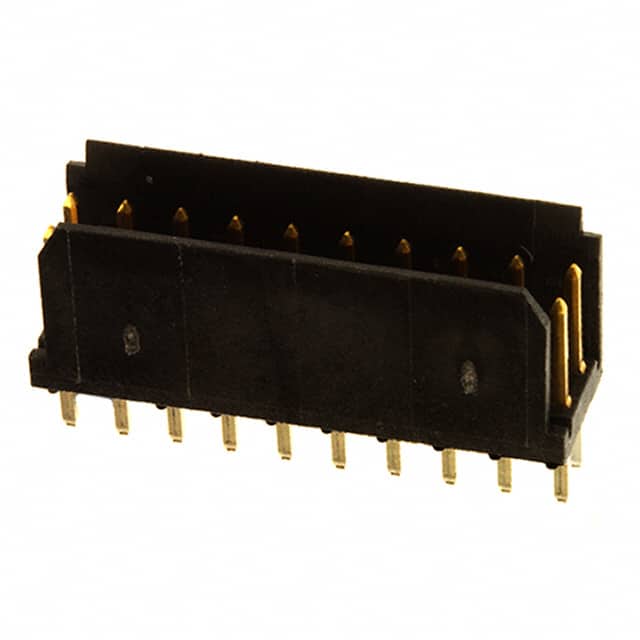

The 76385-310LF is a 20-position, 2-row, 2.54mm pitch shrouded header from Amphenol ICC. It features male square pins with tin plating (30.0µin) and a friction lock fastening type for secure mating. The connector is designed for board-to-cable/wire applications and uses through hole solder termination.
The header has a black thermoplastic, glass filled insulator with UL94 V-0 flammability rating. It is rated for 3A current and operates over -40°C to 125°C. The mating contact length is 5.00mm with an overall contact length of 10.44mm and insulation height of 9.35mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.36 | $3.36 |
| 20+ | $2.71 | $2.71 |
| 30+ | $2.59 | $2.59 |
| 100+ | $2.42 | $2.42 |
| 210+ | $2.26 | $2.26 |
| 240+ | $1.95 | $1.95 |
| 500+ | $2.16 | $2.16 |
| 1,000+ | $2.06 | $2.06 |
| 5,000+ | $1.84 | $1.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.54mm (0.100")
20 positions, all loaded, in 2 rows.
3A
Through hole with solder termination.
-40°C to 125°C
Tin, 30.0µin (0.76µm) thickness.
