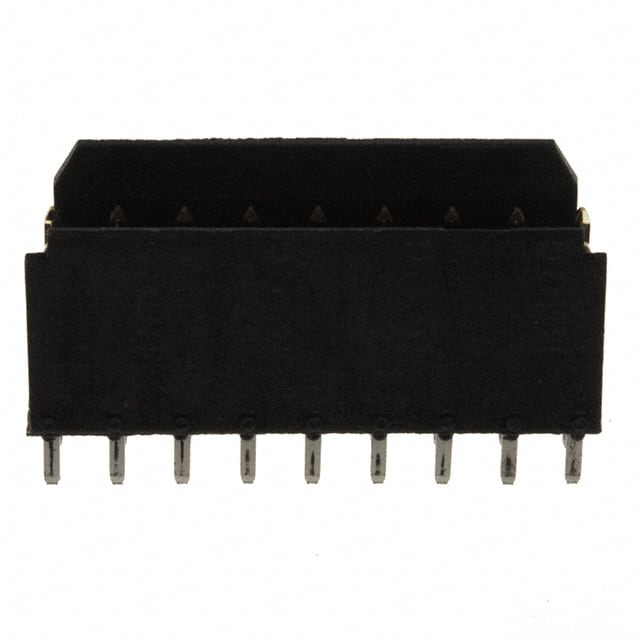

The Amphenol ICC 76385-309LF is a 18-position, dual-row through hole header designed for board-to-cable/wire applications. It features a shrouded 2-wall design with a friction lock mechanism for secure mating. The header uses 2.54mm pitch and 2.54mm row spacing, with all 18 positions loaded.
Mechanically, the header employs male square pins made of copper alloy with a tin finish (0.76µm thickness). The insulation is black glass-filled thermoplastic with a height of 9.35mm. The contact length is 5.00mm, and the overall contact length is 10.44mm. Termination is through hole solder.
Electrically, the connector is rated for 3A continuous current. It operates over a temperature range of -40°C to 125°C and meets UL94 V-0 flammability rating. Environmental compliance includes RoHS and REACH (unverified), with MSL Level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.04 | $3.04 |
| 24+ | $2.43 | $2.43 |
| 120+ | $2.17 | $2.17 |
| 504+ | $1.96 | $1.96 |
| 1,008+ | $1.86 | $1.86 |
| 5,016+ | $1.66 | $1.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18 positions.
2.54mm (0.100 inch).
3A.
Through hole.
-40°C to 125°C.
Tin, 0.76µm thickness.
Yes, it has a shrouded 2-wall design with friction lock.
