| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
189 pcs
|
189 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

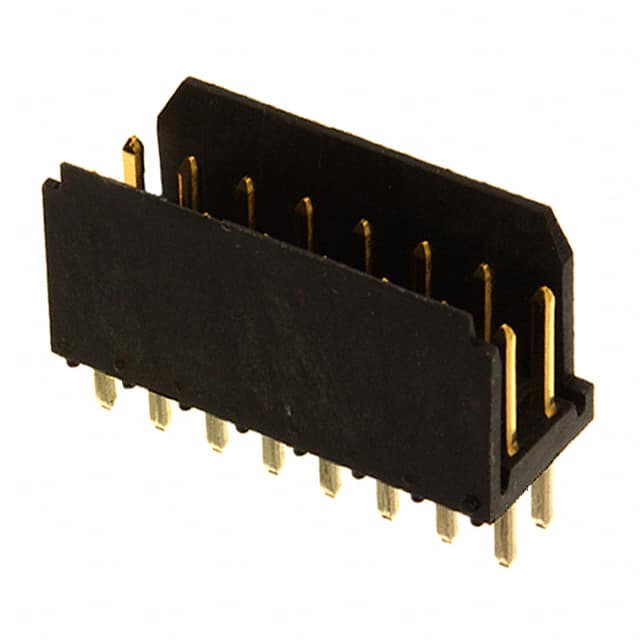

The 76385-308LF is a 16-position, 2-row, shrouded header connector manufactured by Amphenol ICC. It features a 2.54mm (0.100") pitch and row spacing, with a through hole mounting style and solder termination. The connector is designed for board-to-cable/wire applications and includes a friction lock fastening system for secure mating.
The header uses square male pin contacts made of copper alloy with a tin finish (30.0µin / 0.76µm thickness). The insulation is black thermoplastic, glass filled, with a UL94 V-0 flammability rating. The insulation height is 9.35mm (0.368"), and the overall contact length is 10.44mm (0.411").
This connector is rated for 3A current and operates over a temperature range of -40°C to 125°C. It is suitable for use in a variety of industrial and commercial electronic assemblies requiring a reliable, polarized connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.73 | $2.73 |
| 27+ | $2.16 | $2.16 |
| 108+ | $1.96 | $1.96 |
| 513+ | $1.76 | $1.76 |
| 1,026+ | $1.67 | $1.67 |
| 5,022+ | $1.49 | $1.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 16 positions arranged in 2 rows.
The pitch is 2.54mm (0.100").
The current rating is 3A.
It is a through hole mounting connector with solder termination.
The operating temperature range is -40°C to 125°C.
RoHS3 compliance is indicated but unverified.
