| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

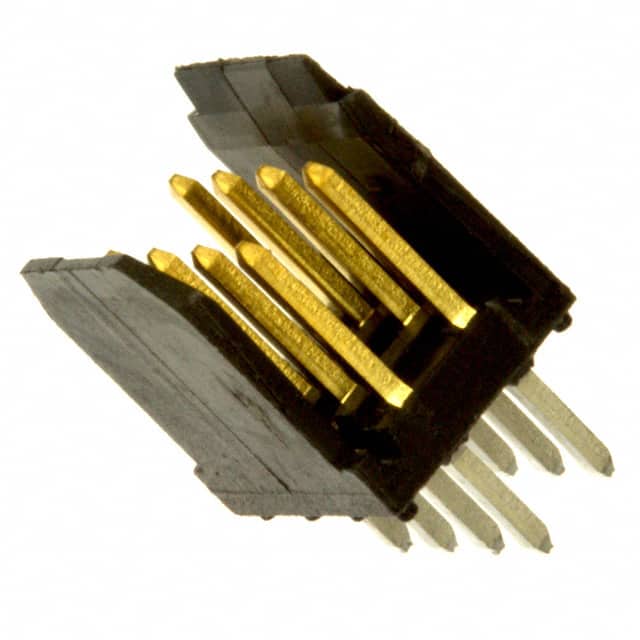

The 76385-304LF is a 8-position, 2-row header from Amphenol ICC with a 2.54mm pitch and 2.54mm row spacing. It features a shrouded - 2 wall design with friction lock for secure mating. The through hole mounting with solder termination ensures reliable board-to-cable/wire connections. Contacts are made of copper alloy with tin plating (0.76µm) and square shape. Overall contact length is 10.44mm, with insulation height 9.35mm. Operating temperature range -40°C to 125°C. Rated current 3A. Insulation material is thermoplastic glass filled, black color, with UL94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.43 | $1.43 |
| 10+ | $1.21 | $1.21 |
| 100+ | $1.03 | $1.03 |
| 500+ | $0.92 | $0.92 |
| 1,000+ | $0.88 | $0.88 |
| 5,000+ | $0.78 | $0.78 |
| 10,000+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 8 positions.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A.
It is a through hole mounting header.
Yes, it is shrouded - 2 wall with friction lock fastening.
The operating temperature range is -40°C to 125°C.
The contacts are tin plated with a thickness of 0.76µm.
