| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
56 pcs
|
56 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

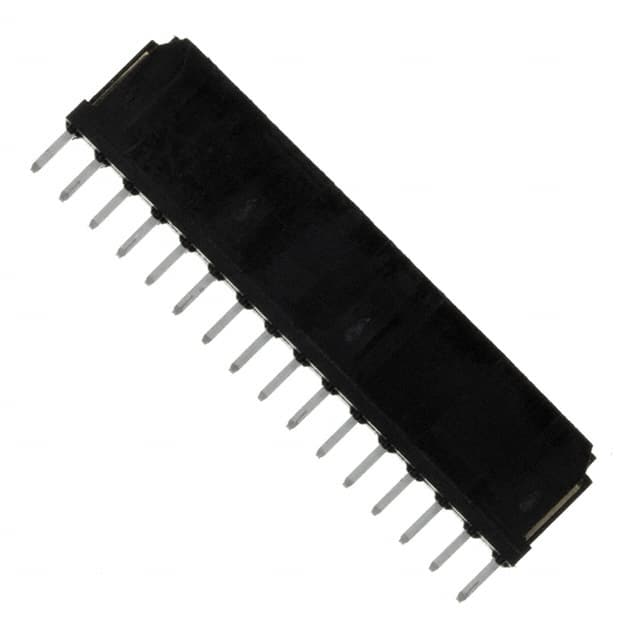

The Amphenol ICC 76384-316LF is a 16-position single row shrouded header designed for board to cable/wire applications. It features a 2.54mm (0.100") pitch and is terminated through through hole soldering. The header uses a friction lock fastening system and has a 2-wall shrouded design to protect male pins. Contacts are made of copper alloy with a tin finish (30.0µin / 0.76µm). The black glass-filled thermoplastic insulator is rated UL94 V-0 for flammability. The header is rated for 3A current and operates from -40°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.77 | $2.77 |
| 14+ | $2.30 | $2.30 |
| 112+ | $1.98 | $1.98 |
| 504+ | $1.78 | $1.78 |
| 1,008+ | $1.70 | $1.70 |
| 5,012+ | $1.52 | $1.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions, single row, all positions loaded.
2.54mm (0.100").
3A.
Through hole, solder termination.
