| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

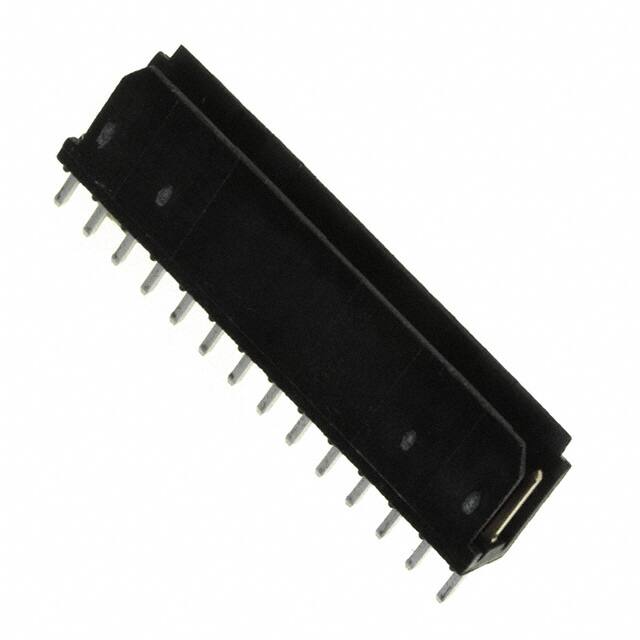

The 76384-314LF is a 14 position single row shrouded header manufactured by Amphenol ICC. It features a 2.54mm (0.100") pitch and through hole mounting with solder termination. The connector is designed for board to cable/wire applications and includes a friction lock fastening type for secure mating.
The header has a black glass filled thermoplastic insulator rated UL94 V-0 for flammability. Contacts are made of copper alloy with a tin finish of 30.0µin (0.76µm). The insulation height is 9.35mm (0.368") and the overall contact length is 10.44mm (0.411"). It is rated for 3A current and operates over a temperature range of -40°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.45 | $2.45 |
| 17+ | $2.00 | $2.00 |
| 102+ | $1.77 | $1.77 |
| 510+ | $1.58 | $1.58 |
| 1,003+ | $1.50 | $1.50 |
| 5,015+ | $1.34 | $1.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 14 positions in a single row.
The current rating is 3A.
Through hole mounting with solder termination.
-40°C to 125°C.
Tin with a thickness of 30.0µin (0.76µm).
