| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,163 pcs
|
1163 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

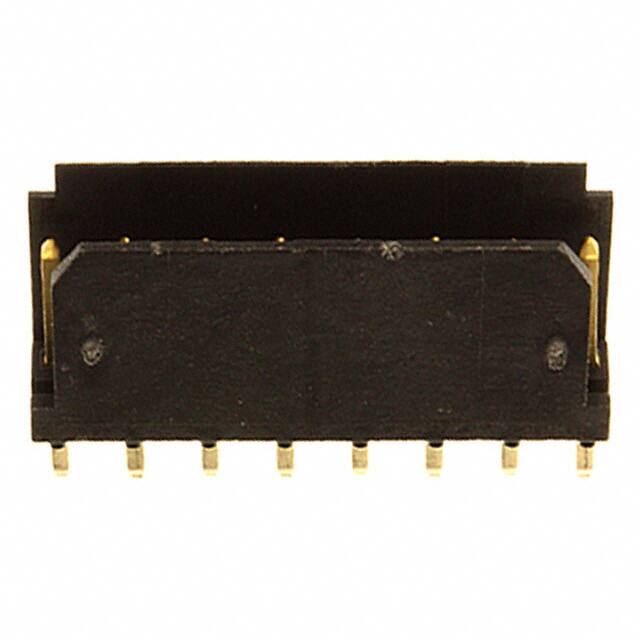

The Amphenol ICC 76384-308LF is a 8-position single row male pin header designed for board to cable/wire applications. It features a 2.54mm (0.100") pitch and is shrouded with a 2-wall design and friction lock for secure mating. The connector is through hole mounted with solder termination. Contacts are made of copper alloy with a tin finish of 30.0µin (0.76µm). The mating contact length is 5.00mm, and the overall contact length is 10.44mm. The insulation height is 9.35mm, and the insulator is black thermoplastic glass filled with a UL94 V-0 flammability rating. The header is rated for 3A current and operates over a temperature range of -40°C to 125°C. It is suitable for general purpose wire-to-board interconnections in a variety of electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.46 | $1.46 |
| 30+ | $1.15 | $1.15 |
| 120+ | $1.04 | $1.04 |
| 510+ | $0.94 | $0.94 |
| 1,020+ | $0.89 | $0.89 |
| 5,010+ | $0.80 | $0.80 |
| 10,020+ | $0.76 | $0.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2.54mm (0.100").
3A.
Through hole.
-40°C to 125°C.
Tin, 30.0µin (0.76µm) thickness.
9.35mm (0.368").
