| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

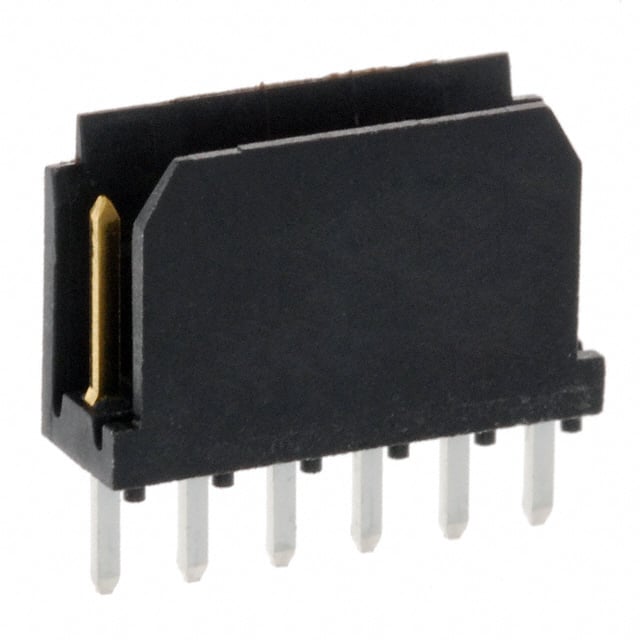

The 76384-306LF is a single-row, 6-position, shrouded header manufactured by Amphenol ICC. It has a 2.54mm pitch and is designed for board-to-cable/wire interconnect applications. The header features a 2-wall shrouding with a friction lock for secure mating.
The contacts are square pins made of copper alloy with a tin finish (30µin thickness). The insulation is black thermoplastic, glass-filled with UL94 V-0 flammability rating. The overall contact length is 10.44mm, with a mating pin length of 5.00mm.
This header is rated for 3A current and operates over a temperature range of -40°C to 125°C. It is mounted via through-hole soldering. The single-row design saves board space.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.10 | $1.10 |
| 10+ | $0.93 | $0.93 |
| 100+ | $0.79 | $0.79 |
| 500+ | $0.71 | $0.71 |
| 1,000+ | $0.67 | $0.67 |
| 5,000+ | $0.60 | $0.60 |
| 10,000+ | $0.57 | $0.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions in a single row.
2.54mm (0.100 inches).
3A.
Through Hole with solder termination.
-40°C to 125°C.
Tin with 30µin (0.76µm) thickness.
Yes, a friction lock for secure mating.
