| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
333 pcs
|
333 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

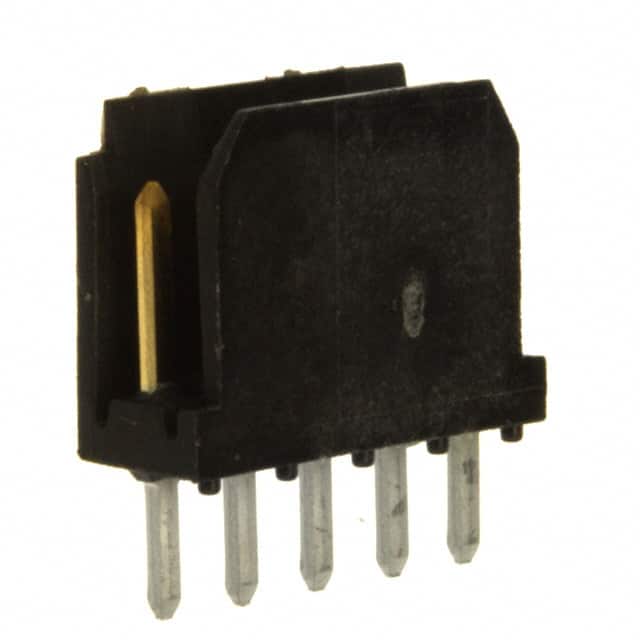

The 76384-305LF is a 5-position, single-row male pin header from Amphenol ICC, designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch, through-hole mounting, and solder termination. The shroud is a 2-wall design with a friction lock for secure mating.
The contacts are square pins made of copper alloy with a tin finish (30.0µin or 0.76µm) and a contact length of 5.00mm (0.197"). The overall contact length is 10.44mm (0.411"). The insulation is thermoplastic, glass filled, colored black, with an insulation height of 9.35mm (0.368").
This header is rated for 3A current and has an operating temperature range of -40°C to 125°C. The material flammability rating is UL94 V-0. All 5 positions are loaded. The contact shape is square, typical for male pin headers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.93 | $0.93 |
| 10+ | $0.79 | $0.79 |
| 100+ | $0.67 | $0.67 |
| 500+ | $0.60 | $0.60 |
| 1,000+ | $0.57 | $0.57 |
| 5,000+ | $0.51 | $0.51 |
| 10,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
2.54mm (0.100")
3A
Through hole
-40°C to 125°C
Tin
Thermoplastic, glass filled
