76384-303LF 3-position single-row header male pins with 2.54mm pitch, through hole mounting, and tin plated contacts. Rated for 3A current with operating temperature range -40°C to 125°C.
Mfr Part #:

76384-303LF

Available from 3 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
3-position single-row header male pins with 2.54mm pitch, through hole mounting, and tin plated contacts. Rated for 3A current with operating temperature range -40°C to 125°C.
✓ Total Stock: 3,130 pcs
$ Price Range: $0.30 - $0.58

76384-303LF Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
130 pcs
On Request
130 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

76384-303LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Shrouding
Style
Termination
View Similar Products (0)

76384-303LF Description

Short technical summary and product information.

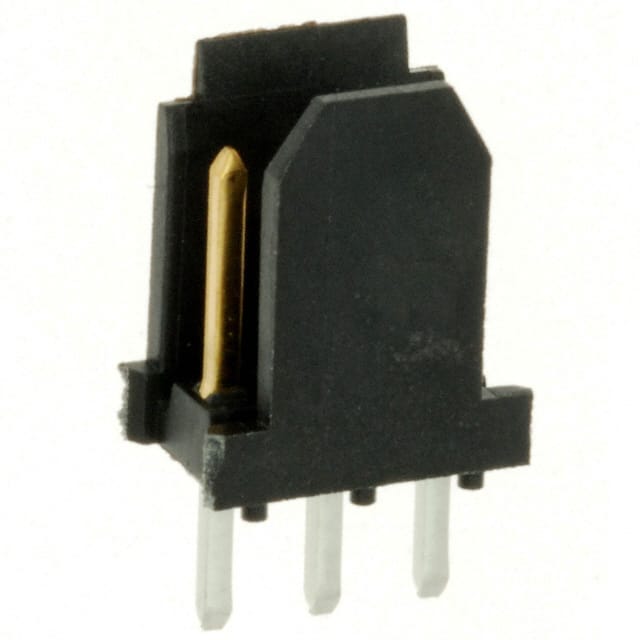

The 76384-303LF is a 3-position single-row male pin header manufactured by Amphenol ICC. It features a 2.54mm (0.100") pitch and through hole mounting with solder termination, making it suitable for board-to-cable/wire applications. The housing is made of black thermoplastic with glass fill, rated UL94 V-0 for flammability. The contacts are made of copper alloy with a tin finish (30µin/0.76µm thickness) and have a square shape. The connector is shrouded with a 2-wall design and includes a friction lock for secure mating. The overall contact length is 10.44mm (0.411") with an insulation height of 9.35mm (0.368"). Electrical rating is 3A continuous current, and the operating temperature range is -40°C to 125°C. This header is designed for reliable wire-to-board connections in various electronic assemblies.

76384-303LF Quick Information

Product Type: Header, Male Pins
Series: 76384
Canonical Name: Header, Male Pins, 3 Position, 2.54mm Pitch, Through Hole
Subcategory: Male Pins

76384-303LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Yes

76384-303LF Estimated Pricing

Qty Low High
1+ $0.58 $0.58
10+ $0.49 $0.49
100+ $0.42 $0.42
500+ $0.38 $0.38
1,000+ $0.36 $0.36
5,000+ $0.32 $0.32
10,000+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

76384-303LF Features

  • Single-row 3-position header with 2.54mm pitch.
  • Through hole mounting with solder termination.
  • Tin plated copper alloy contacts.
  • Rated for 3A continuous current.
  • UL94 V-0 rated thermoplastic housing.

76384-303LF Applications

  • Used in board-to-cable wire connections.
  • Suitable for signal and power distribution.
  • Ideal for friction-lock secure mating.
  • Applicable in industrial control and consumer electronics.

76384-303LF FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 76384-303LF have?

3 positions.

What is the pitch of the 76384-303LF?

2.54mm (0.100").

What is the current rating of the 76384-303LF?

3A.

What is the mounting type of the 76384-303LF?

Through hole.

What is the operating temperature range of the 76384-303LF?

-40°C to 125°C.

What is the flammability rating of the insulation?

UL94 V-0.

What is the contact finish on the 76384-303LF?

Tin with 30µin (0.76µm) thickness.
