| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
416 pcs
|
416 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

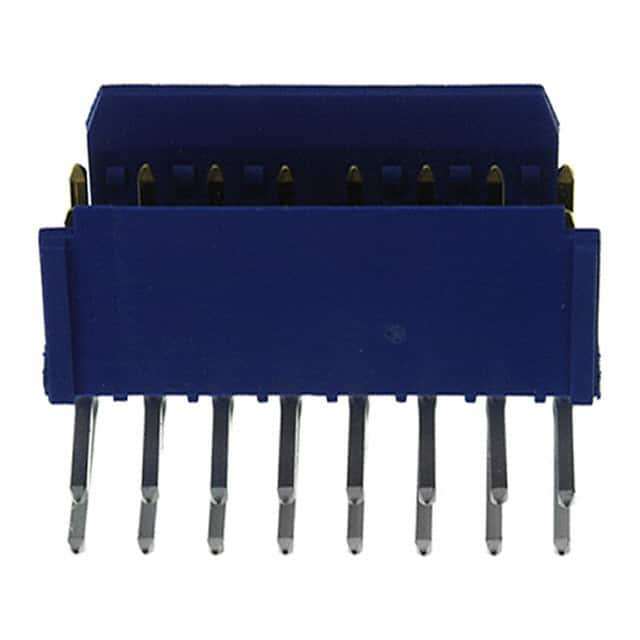

The 76383-308LF is a 16-position rectangular header from Amphenol ICC, designed for board-to-cable/wire applications. It features a 2.54mm pitch and 2 rows of male pin contacts, with all positions loaded. The header is shrouded with a 2-wall design and includes a friction lock fastening type for secure mating.
Electrical and mechanical specifications include a current rating of 3A, phosphor bronze contacts with tin finish (30µin), and a glass-filled polyester insulation material rated UL94 V-0. The operating temperature range is -40°C to 125°C, making it suitable for demanding environments.
Mounting is through-hole, right-angle orientation with solder termination. The contact length is 5.00mm, and the insulation height is 7.80mm. The connector is available in blue insulation color. This header is commonly used in industrial, automotive, and telecommunications equipment where reliable wire-to-board interconnects are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.17 | $2.17 |
| 26+ | $1.73 | $1.73 |
| 104+ | $1.56 | $1.56 |
| 520+ | $1.40 | $1.40 |
| 1,014+ | $1.33 | $1.33 |
| 5,018+ | $1.19 | $1.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions, all loaded.
2.54mm (0.100").
3A per contact.
Through Hole, Right Angle with solder termination.
-40°C to 125°C.
Tin, 30.0µin (0.76µm) over phosphor bronze.
Yes, shrouded - 2 wall with friction lock.
