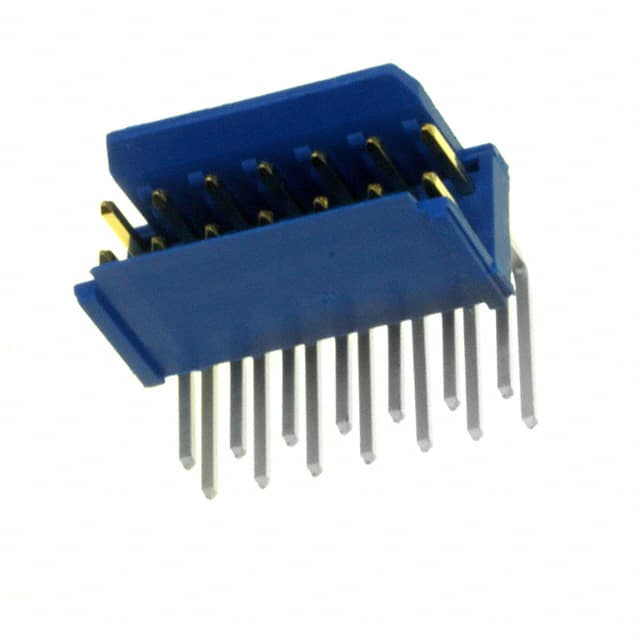

76383-307LF Amphenol ICC 76383-307LF is a 14-position, 2.54mm pitch right angle male pin header with shrouded housing and friction lock. It features through-hole mounting, tin contacts, and UL94 V-0 insulation.
Mfr Part #:

76383-307LF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Amphenol ICC 76383-307LF is a 14-position, 2.54mm pitch right angle male pin header with shrouded housing and friction lock. It features through-hole mounting, tin contacts, and UL94 V-0 insulation.
✓ Total Stock: 5 pcs
$ Price Range: $0.84 - $1.60

76383-307LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

76383-307LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Operating Temperature Range
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

76383-307LF Description

Short technical summary and product information.

The 76383-307LF from Amphenol ICC is a 14-position, 2.54mm (0.100") pitch right angle header designed for board-to-cable/wire interconnect applications. This shrouded header features a 2-wall housing with a friction lock fastening system for secure mating with corresponding receptacles. The through-hole mounting style with right angle orientation allows for low-profile connections perpendicular to the PCB. Contacts are made of phosphor bronze with a tin finish (0.76µm thickness) and are rated for 3A. The glass-filled polyester insulator is colored blue and meets UL94 V-0 flammability rating, with an operating temperature range of -40°C to 125°C. All 14 positions are loaded, providing a reliable interconnect solution for industrial and consumer electronics.

76383-307LF Quick Information

Product Type: Header, Male Pins
Canonical Name: Amphenol ICC 76383-307LF - 14 Position Right Angle Header, 2.54mm Pitch, Shrouded, Friction Lock
Subcategory: Headers, Male Pins

76383-307LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: Non-Compliant

76383-307LF Estimated Pricing

Qty Low High
1+ $1.60 $1.60
29+ $1.26 $1.26
116+ $1.14 $1.14
522+ $1.03 $1.03
1,015+ $0.98 $0.98
5,017+ $0.88 $0.88
10,005+ $0.84 $0.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

76383-307LF Features

  • 14-position right angle header.
  • 2.54mm pitch for standard spacing.
  • Shrouded housing with friction lock.
  • Tin-plated phosphor bronze contacts.
  • Rated for 3A current.

76383-307LF Applications

  • Board-to-cable/wire interconnect applications.
  • Ideal for industrial control modules.
  • Used in consumer electronics assemblies.

76383-307LF FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 76383-307LF have?

14 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating?

3A.

What is the mounting type?

Through Hole, Right Angle.

Is the header shrouded?

Yes, with a 2-wall shrouded housing.

What is the operating temperature range?

-40°C to 125°C.

What is the contact finish?

Tin, 0.76µm (30.0µin) thickness.
