| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

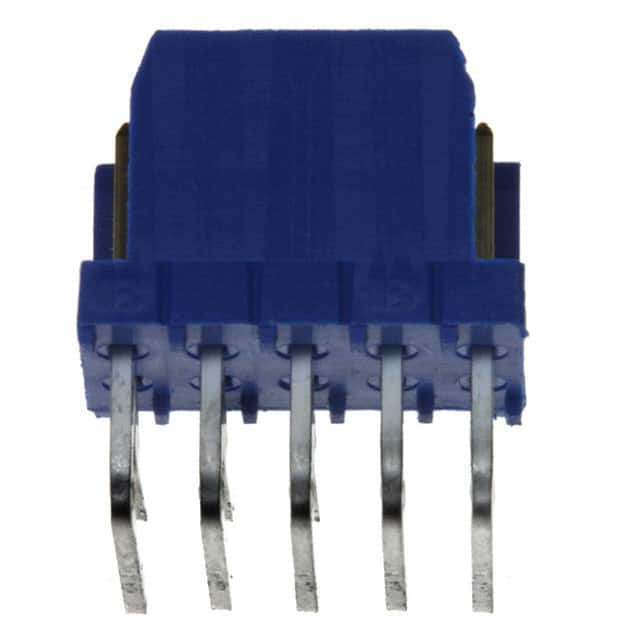

The Amphenol ICC 76383-305LF is a 10 position (2 rows) 2.54mm pitch right angle through-hole header with a shrouded 2-wall design and friction lock fastening. It is intended for board-to-cable/wire connections in a variety of electronic assemblies.
Specifications include: tin-plated phosphor bronze contacts with 30µin tin finish, rated for 3A maximum current. The insulation is blue glass-filled polyester with a UL94 V-0 flammability rating. Operating temperature range is -40°C to 125°C.
This header is designed for right angle mounting, saving board space in low-profile applications. The friction lock ensures secure mating with compatible receptacles.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.15 | $2.15 |
| 10+ | $1.82 | $1.82 |
| 100+ | $1.55 | $1.55 |
| 500+ | $1.38 | $1.38 |
| 1,000+ | $1.32 | $1.32 |
| 5,000+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in 2 rows.
2.54mm (0.100")
3A maximum.
Through Hole, Right Angle.
-40°C to 125°C.
Tin, 30.0µin (0.76µm) thickness.
Friction lock.
