| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

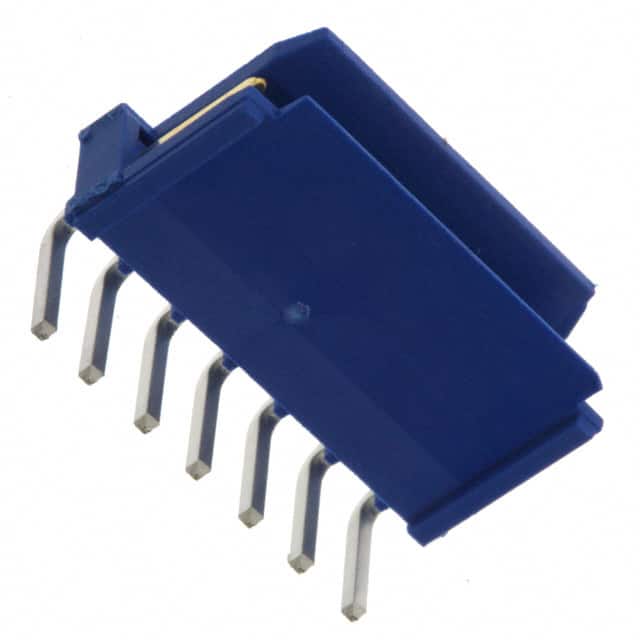

The Amphenol ICC 76382-307LF is a 7-position single row right angle shrouded header designed for board-to-cable/wire connections. It features a 2.54mm (0.100") pitch and male square pins with tin-plated phosphor bronze contacts. The header is shrouded on all four walls and includes a friction lock for secure mating.
The connector is through-hole mounted with solder termination and has a blue glass-filled polyester insulator rated UL94 V-0. It operates over a temperature range of -40°C to 125°C and is rated for 3A current. The mating contact length is 5.00mm (0.197").
| Qty | Low | High |
|---|---|---|
| 1+ | $1.30 | $1.30 |
| 33+ | $1.02 | $1.02 |
| 132+ | $0.92 | $0.92 |
| 528+ | $0.84 | $0.84 |
| 1,023+ | $0.80 | $0.80 |
| 5,016+ | $0.71 | $0.71 |
| 10,032+ | $0.68 | $0.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 7 positions in a single row.
The current rating is 3A.
It is through-hole, right angle mounting.
The operating temperature range is -40°C to 125°C.
