| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Spacing (Pitch) | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

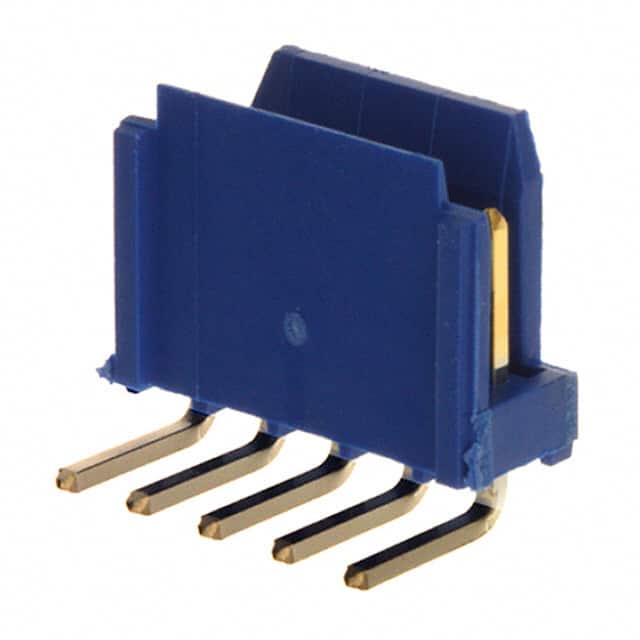

The Amphenol ICC 76382-305LF is a 5-position, single-row, right-angle through-hole shrouded header designed for board-to-cable/wire interconnections. It uses a 2.54mm pitch and features a 4-wall shrouding with a friction lock for secure mating. The contacts are square pins made of phosphor bronze with a tin finish (30.0µin / 0.76µm). The insulator is blue polyester, glass-filled with a UL94 V-0 flammability rating. This connector is rated for 3A continuous current and operates over a temperature range of -40°C to 125°C. The contact length is 5.00mm and the insulation height is 5.30mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
| 10+ | $0.92 | $0.92 |
| 100+ | $0.78 | $0.78 |
| 500+ | $0.70 | $0.70 |
| 1,000+ | $0.66 | $0.66 |
| 5,000+ | $0.59 | $0.59 |
| 10,000+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 5 positions in a single row.
The current rating is 3A.
It uses through-hole, right-angle mounting with solder termination.
The operating temperature range is -40°C to 125°C.
The contact finish is tin with a thickness of 0.76µm (30.0µin).
