| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | 2148+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

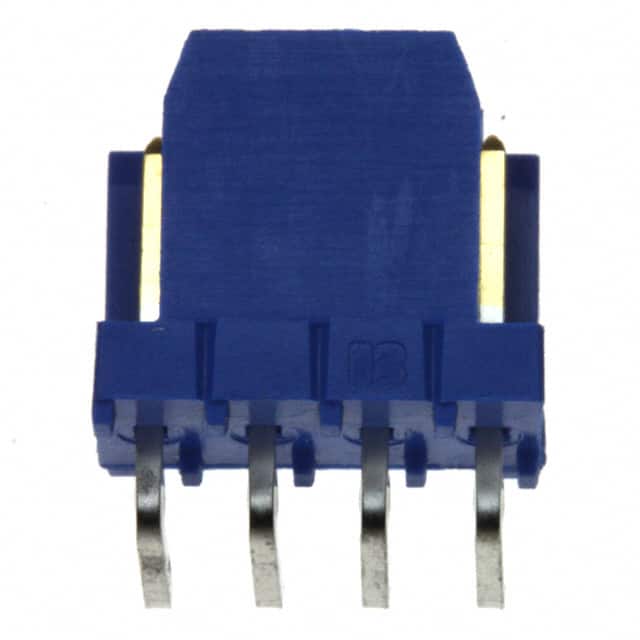

The Amphenol ICC 76382-304LF is a 4 position single row right angle shrouded header designed for board-to-cable/wire applications. It features a 2.54mm pitch and through hole solder termination. The header is fully shrouded with a 4-wall design and includes a friction lock for secure mating. Contacts are made of phosphor bronze with a tin finish (0.76µm thickness) and have a square shape. The insulation is blue polyester, glass filled with a UL94 V-0 flammability rating. The operating temperature range is -40°C to 125°C. This connector is rated for 3A current.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.88 | $0.88 |
| 10+ | $0.75 | $0.75 |
| 100+ | $0.63 | $0.63 |
| 500+ | $0.57 | $0.57 |
| 1,000+ | $0.54 | $0.54 |
| 5,000+ | $0.48 | $0.48 |
| 10,000+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm.
It has 4 positions.
The current rating is 3A.
Through hole, right angle.
-40°C to 125°C.
Tin, 0.76µm thickness.
