| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

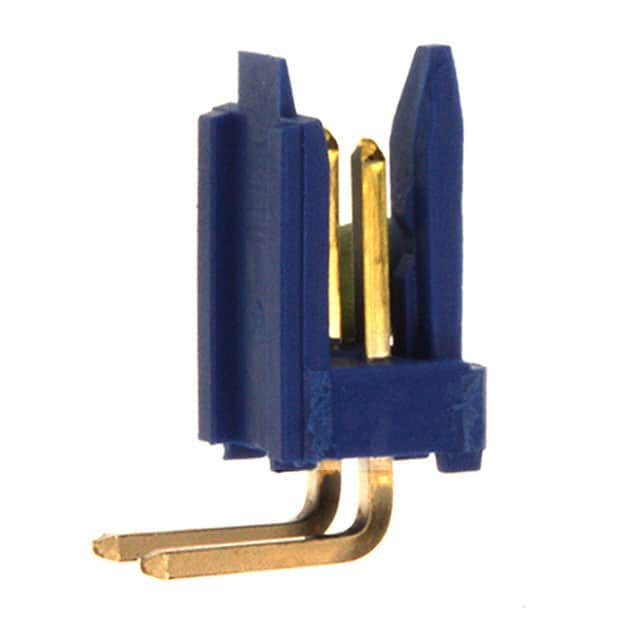

The Amphenol ICC 76382-302LF is a 2 position single row right angle through hole shrouded header designed for board to cable/wire applications. It features a 2.54mm pitch and a friction lock fastening type for secure mating. The header is shrouded on all four walls providing robust protection for the male pins.
The connector is rated for 3A current and operates over a temperature range of -40°C to 125°C. The insulation is made of glass filled polyester with a blue color and a UL94 V-0 flammability rating. Contacts are phosphor bronze with a tin finish and a contact finish thickness of 30.0µin (0.76µm). The contact length is 5.00mm and the insulation height is 5.30mm.
This header is suitable for a variety of wire-to-board interconnection needs where a compact and reliable right angle connection is required. The through hole mounting provides a robust mechanical attachment to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 10+ | $0.64 | $0.64 |
| 100+ | $0.54 | $0.54 |
| 500+ | $0.49 | $0.49 |
| 1,000+ | $0.46 | $0.46 |
| 5,000+ | $0.41 | $0.41 |
| 10,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100 inches).
This header has 2 positions.
The current rating is 3A.
Through hole, right angle.
-40°C to 125°C.
Tin with a thickness of 30.0µin (0.76µm).
